Removal and Installation

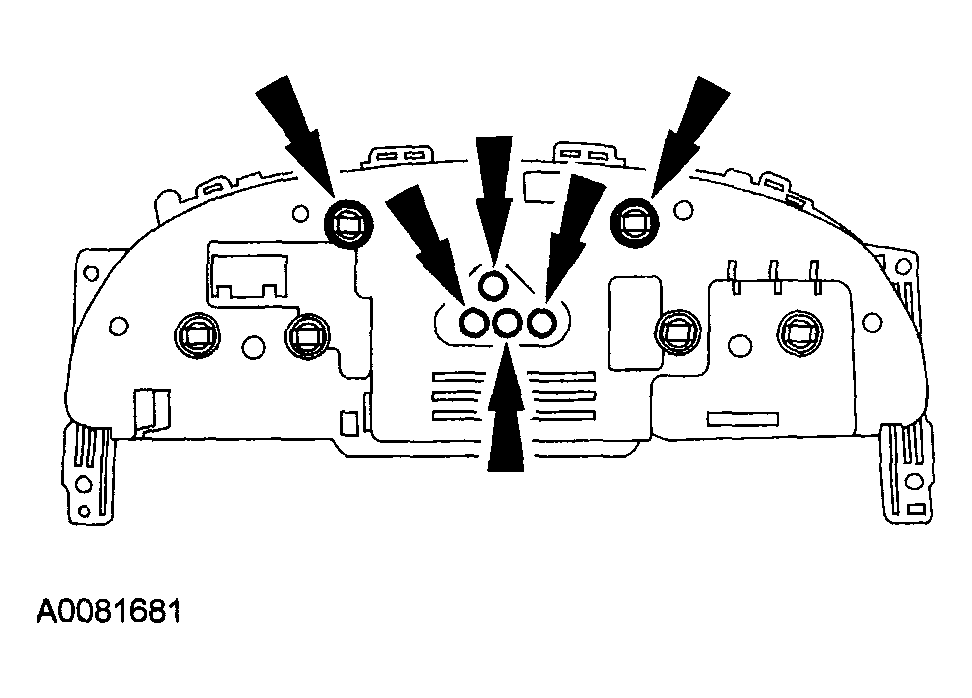

Fig 1: Locating Warning Indicator Bulb

Courtesy of MAZDA MOTORS CORP.

Remove the instrument cluster. See INSTRUMENT CLUSTER .
NOTE:
- To remove the warning indicator bulb, rotate the bulb one quarter turn counterclockwise and lift it straight out from the instrument cluster.
Remove the warning indicator bulb in question.
To install, reverse the removal procedure.
