On-Board Diagnostic Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

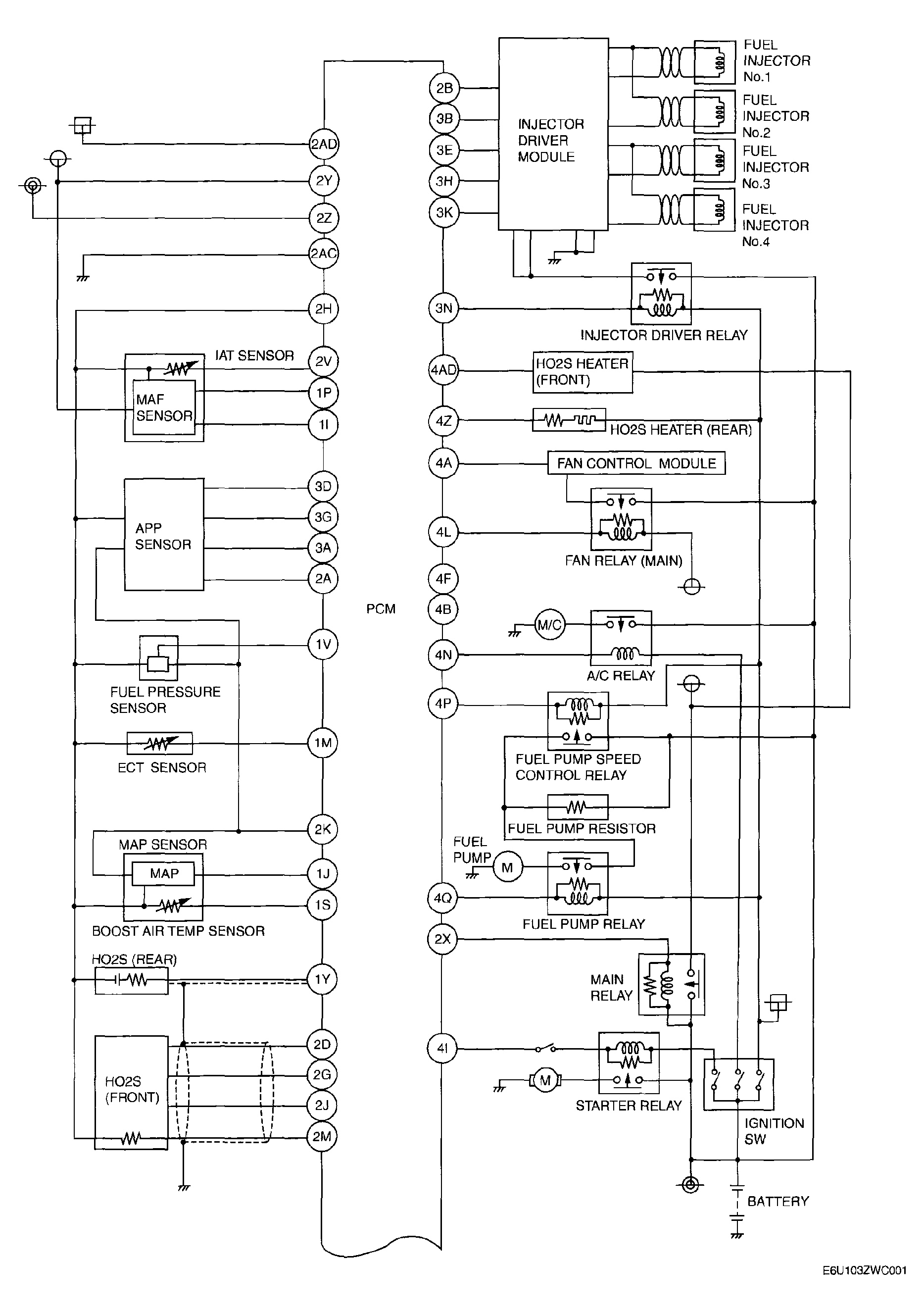

Fig 1: On-Board Diagnostic Wiring Diagram (1 Of 2)
G04324068Courtesy of MAZDA MOTORS CORP.

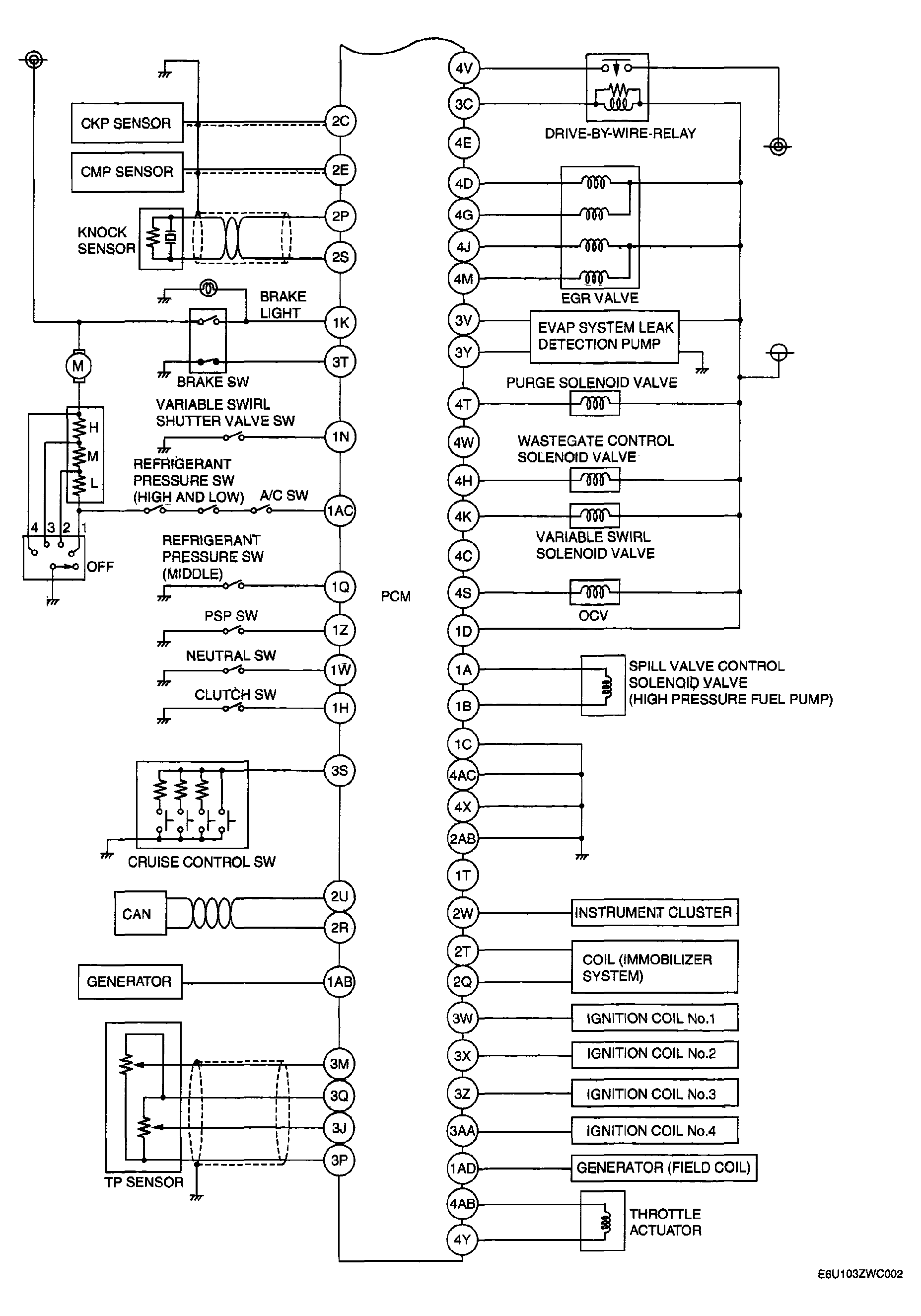

Fig 2: On-Board Diagnostic Wiring Diagram (2 Of 2)
G04324069Courtesy of MAZDA MOTORS CORP.
