Variable Tumble Shutter Valve Actuator Inspection

WARNING: This page is about a different variant/trim than selected.
  1. Remove the air hose. (See INTAKE AIR SYSTEM REMOVAL/INSTALLATION ).
  2. Disconnect the vacuum hose from the variable tumble solenoid valve.
  3. Connect a vacuum pump to the Variable tumble shutter valve actuator.
  4. Apply vacuum and verify that the rod moves.
    • If the rod does not move, replace the intake manifold.

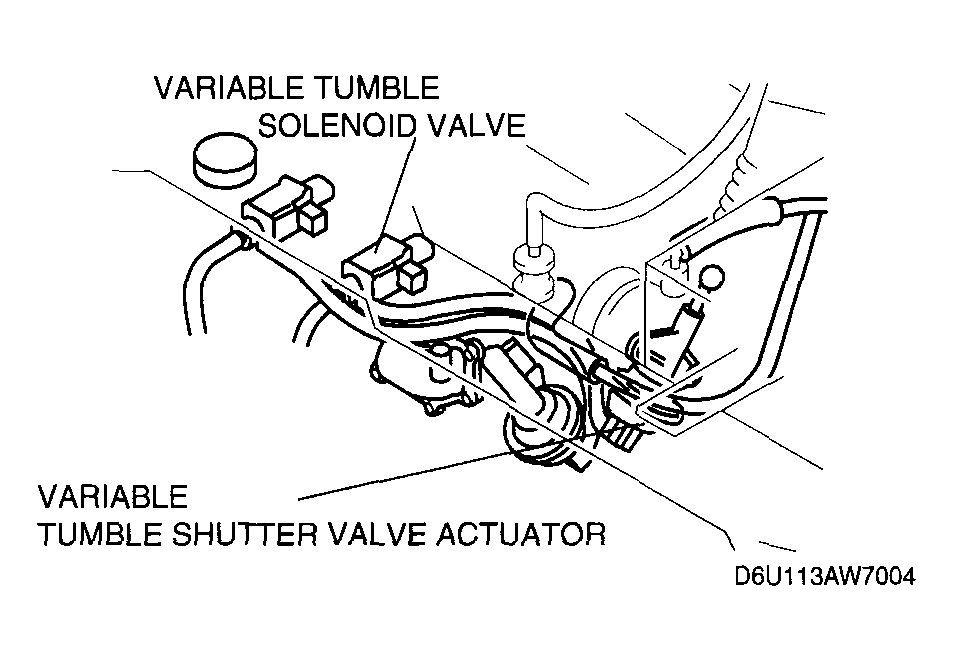

      Fig 1: Locating Variable Tumble Shutter Valve Actuator
      G04324719
      ROD MOVEMENT CHART

      Vacuum kPa {mmHg, inHg} Rod movement
      Below -2.7 {-20, -0.7} Not move
      Above -33.4 {-250, -9.9} Fully pulled
