Resistance Inspection
WARNING: This page is about a different variant/trim than selected.
- Disconnect the negative battery cable.
- Disconnect the throttle body connector.

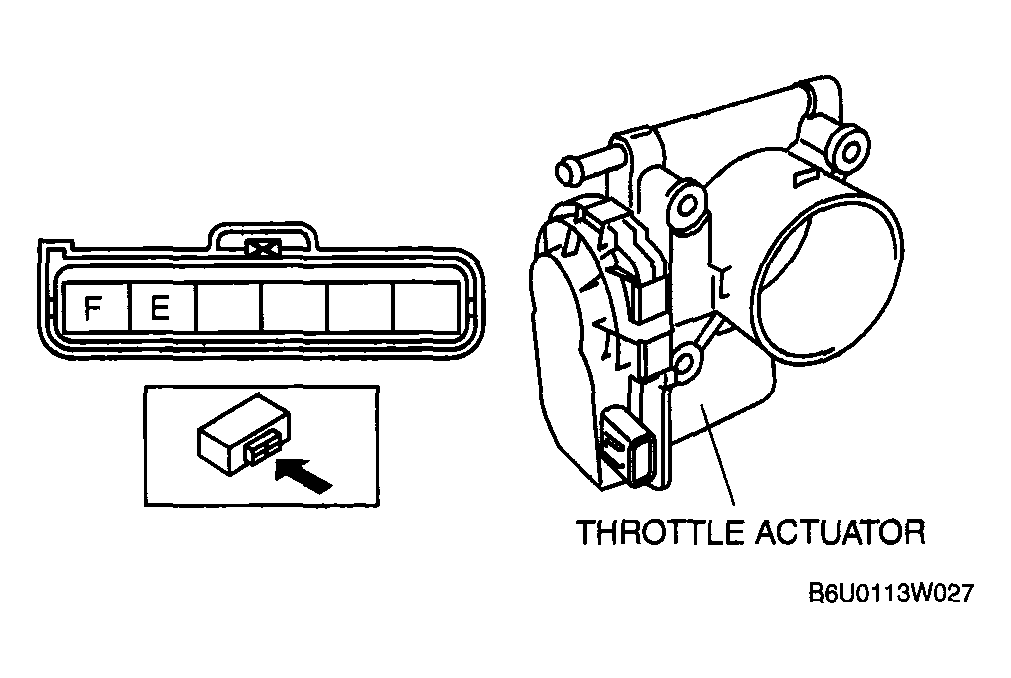

- Measure the resistance between the throttle actuator terminals using an ohmmeter.
- If not as specified, replace the throttle body. (See INTAKE AIR SYSTEM REMOVAL/INSTALLATION ).
- If as specified, carry out the "Circuit Open/Short Inspection".
Specification
AMBIENT TEMPERATURE SPECIFICATION
| Ambient temperature (°C {°F}) | Resistance (ohm) |
|---|---|
| Approx. 20 {68} | 0.3-100 |
