Reverse Switch Inspection

WARNING: This page is about a different variant/trim than selected.

Disconnect the reverse switch connector.

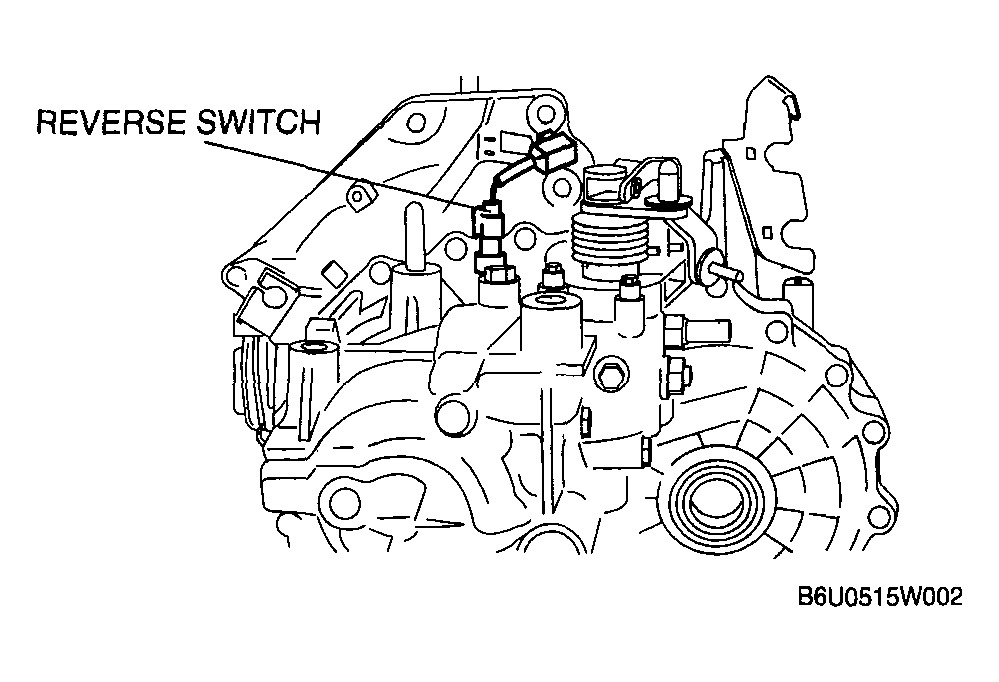

Fig 1: Reverse Switch Connector
Courtesy of MAZDA MOTORS CORP.
Shift the shift lever to each position, and inspect for continuity between terminals A and B.
- If not as specified, replace the reverse switch.
  (See REVERSE SWITCH REMOVAL/INSTALLATION ).

  Fig 2: Inspecting Continuity Between Terminals A & B
  Courtesy of MAZDA MOTORS CORP.
Specification

Fig 3: Continuity Specification Chart
Courtesy of MAZDA MOTORS CORP.
Connect the reverse switch connector.
