No. 4 Engine Mount Bracket Removal Note

WARNING: This page is about a different variant/trim than selected.

Remove the ABS/TCS HU/CM connector. (See ABS/TCS HU/CM REMOVAL/INSTALLATION. )
Remove the dynamic chamber. (See INTAKE AIR SYSTEM REMOVAL/INSTALLATION )
Using the bolts M12 x 1.25, length 25 mm {0.984 in} to Install the SST as shown (LH bank and RH bank).
Tightening torque

100-125 N.m {10.2-12.7 kgf.m, 73.8-92.1 ft.lbf}

Fig 1: Removing Engine Mount Bracket LH Bank
Courtesy of MAZDA MOTORS CORP.
Install the SST using the following procedure.

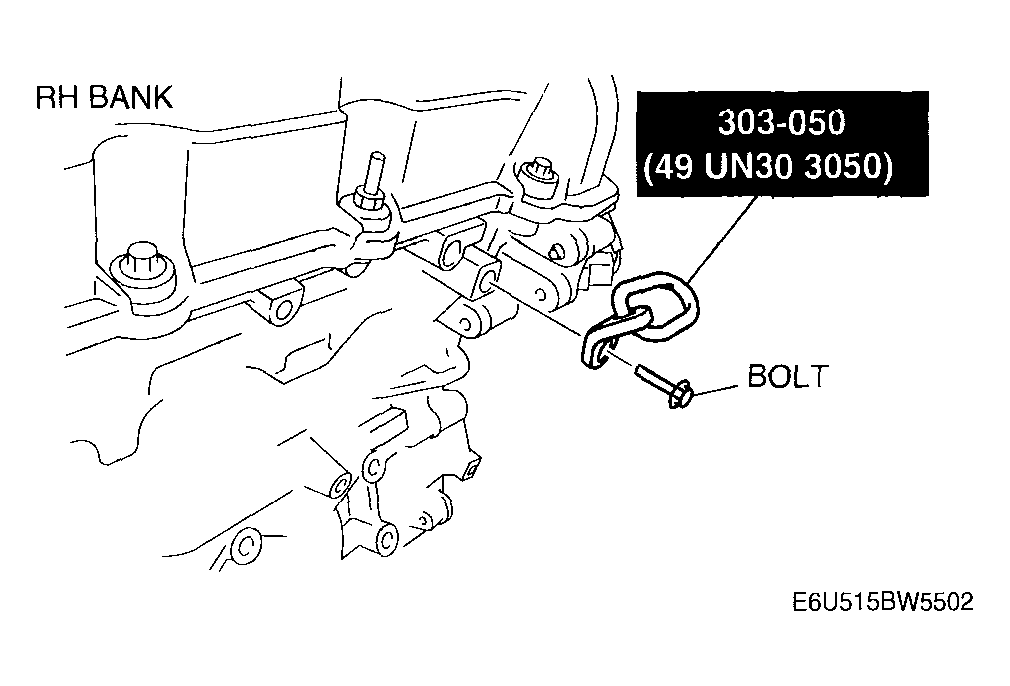

Fig 2: Removing Engine Mount Bracket RH Bank
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- Refer to for the basic handing procedure.

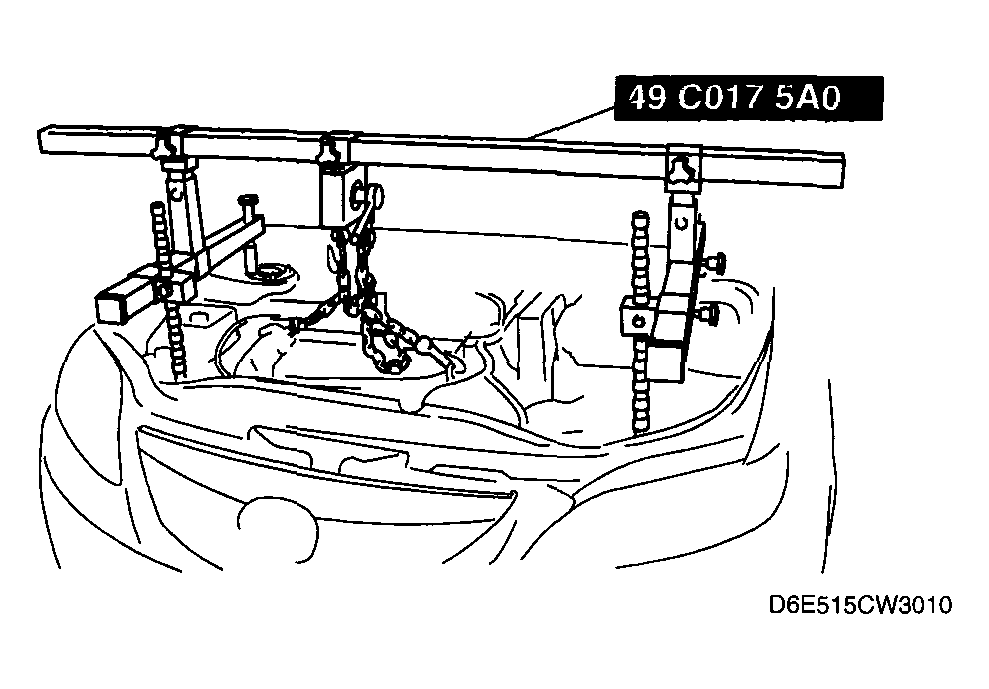

  Fig 3: Identifying Special Engine Support Tool
  Courtesy of MAZDA MOTORS CORP.
1. Install the right rear shaft of the SST to the bolt of the right shock absorber as shown in the figure.
2. Install the left rear shaft of the SST to the bolt of the left shock absorber. (Identical position to the right side)
  CAUTION:
  - When setting the SST on the right side, make sure it doesn't interfere with the ABS/TCS HU/CM.

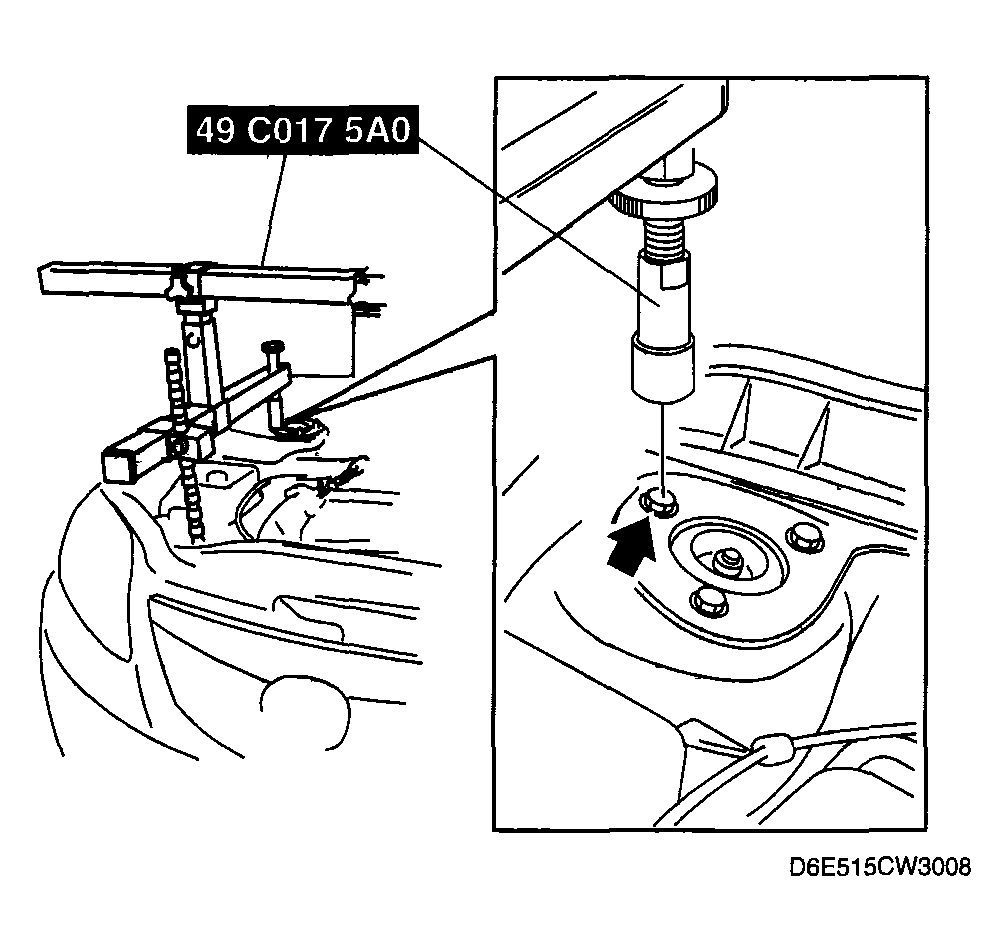

    Fig 4: Installing Right Rear Shaft Of SST To Bolt Of Right Shock Absorber
    Courtesy of MAZDA MOTORS CORP.
3. Install the left/right front shaft of the SST with front foot No.2 to the bolt as shown in the figure.
  *: If equipped
4. Adjust the positions of the SST side bars so that they are the same height (left and right) and horizontal.
5. Make sure each joint is securely tightened.

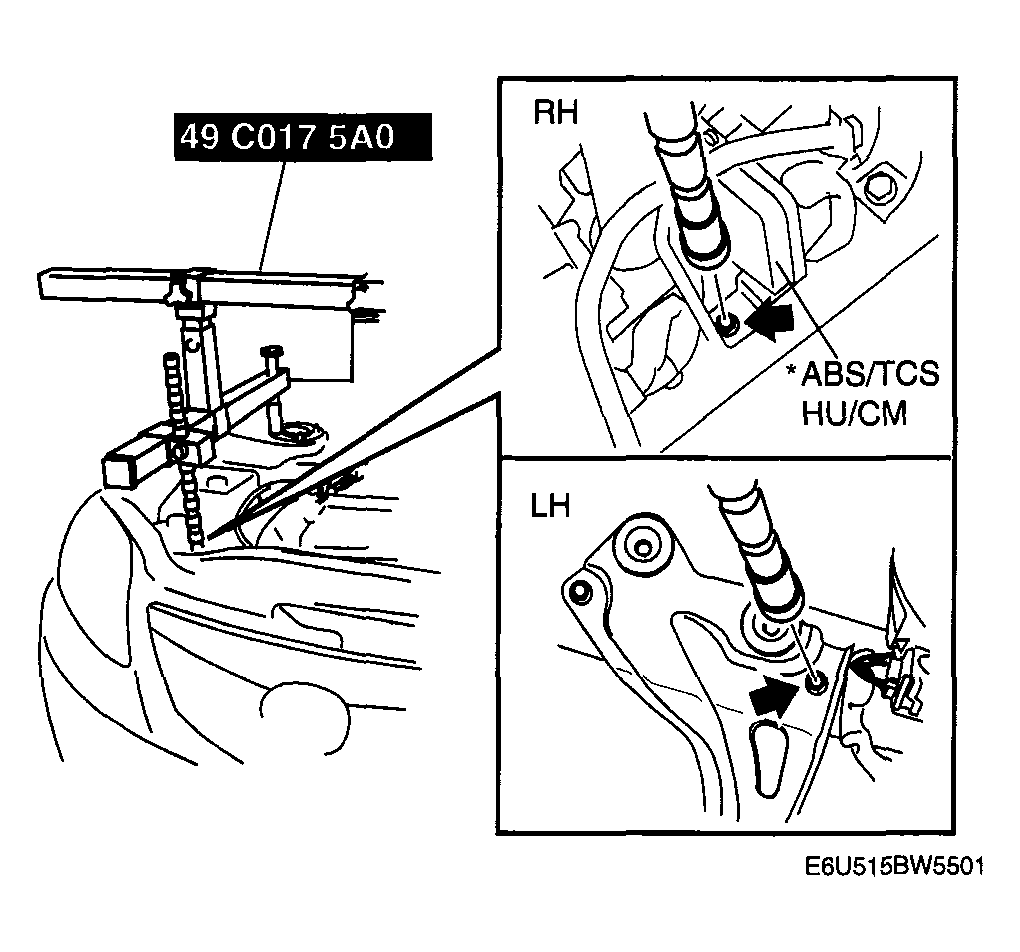

  Fig 5: Installing Left/Right Front Shaft Of SST
  Courtesy of MAZDA MOTORS CORP.
Support the engine using the SST .
NOTE:
- The SST (49 E017 5A0) can be used in place of the SST (49 C017 5A0).
Remove the No.4 engine mount bracket.

Fig 6: Supporting Engine Using SST
Courtesy of MAZDA MOTORS CORP.
