Manual Transaxle Removal Note

WARNING: This page is about a different variant/trim than selected.

Remove the stud of the No.4 engine mount.
Lean the engine toward the transaxle.

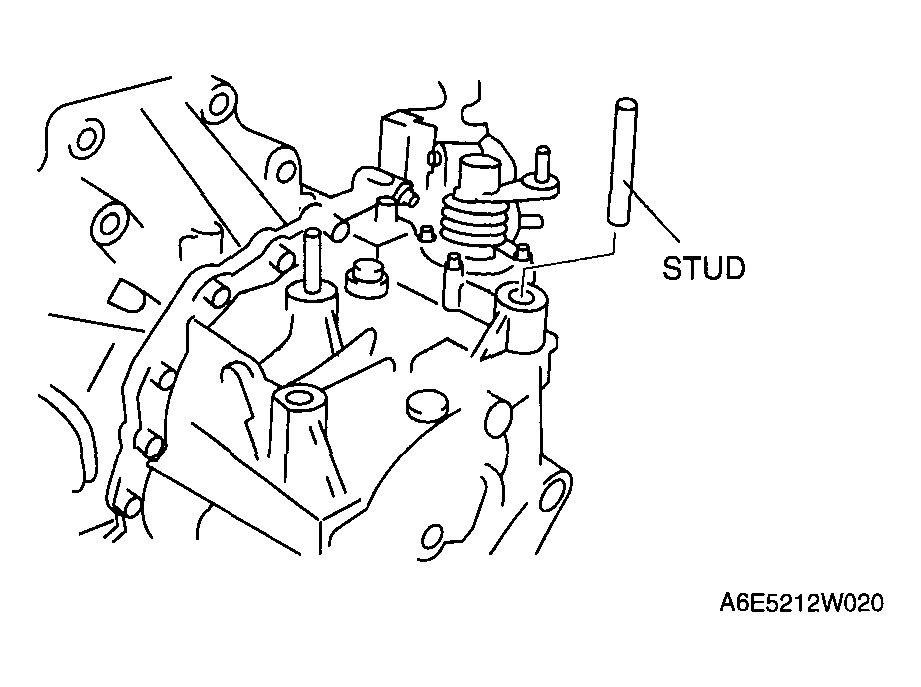

Fig 1: Removing Stud Of No.4 Engine Mount
Courtesy of MAZDA MOTORS CORP.
Support the transaxle on a jack.
Remove the transaxle mounting bolts.
Remove the transaxle.

Fig 2: Supporting Transaxle On A Jack
Courtesy of MAZDA MOTORS CORP.
