Transaxle Oil Inspection
WARNING: This page is about a different variant/trim than selected.

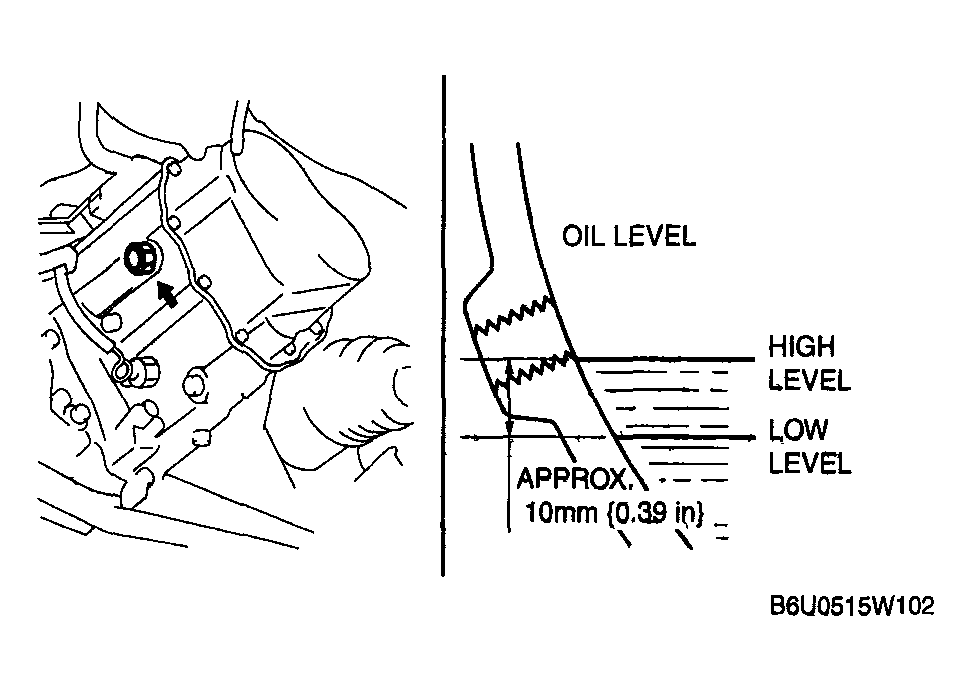

- Park the vehicle on level ground.
- Remove the oil level plug and washer.
- Verify that the oil is near the brim of the plug port.
- If the oil level is lower than the low level, add the specified amount and type of oil through the oil level plug hole.
Manual transaxle oil [G35M-R]
Specified oil grade: API Service GL-4 or GL-5
Specified oil viscosity (All-season): SAE 75W-90
Specified oil viscosity (Above 10 °C {50 °F}): SAE 80W-90
- If the oil level is lower than the low level, add the specified amount and type of oil through the oil level plug hole.
- Install a new washer and the oil level plug.
Tightening torque
39-59 N.m {4.0-6.0 kgf.m, 29-43 ft.lbf}
