Exhaust Manifold Insulator (Lower) Installation Note

WARNING: This page is about a different variant/trim than selected.

Tighten the exhaust manifold insulator (lower) installation bolts in the order shown.
Tightening torque

7.8-10.8 N.m {80-110 kgf.cm, 70-95 in.lbf}

Fig 1: Exhaust Manifold Insulator Tightening Sequence
Courtesy of MAZDA MOTORS CORP.
Verify that the insulator is installed as shown.

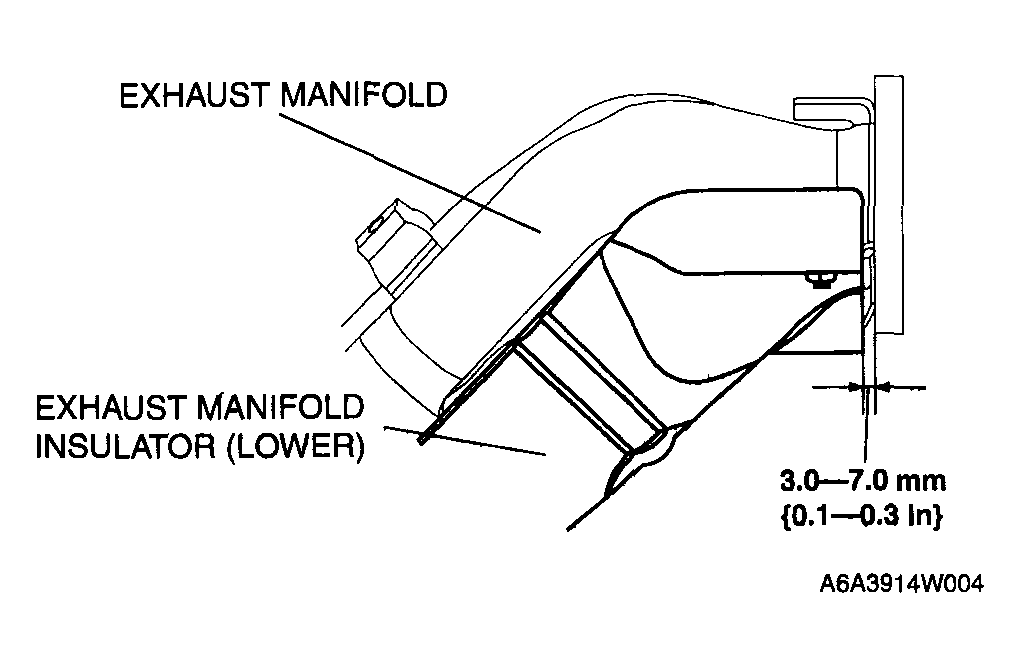

Fig 2: Exhaust Manifold, Exhaust Manifold Lower Isolator & Torque Specification
Courtesy of MAZDA MOTORS CORP.
