Except for California emission regulation applicable ATX model

WARNING: This page is about a different variant/trim than selected.

Tightening torque

43-64 N.m {4.4-6.5 kgf.m, 32-47 ft.lbf}

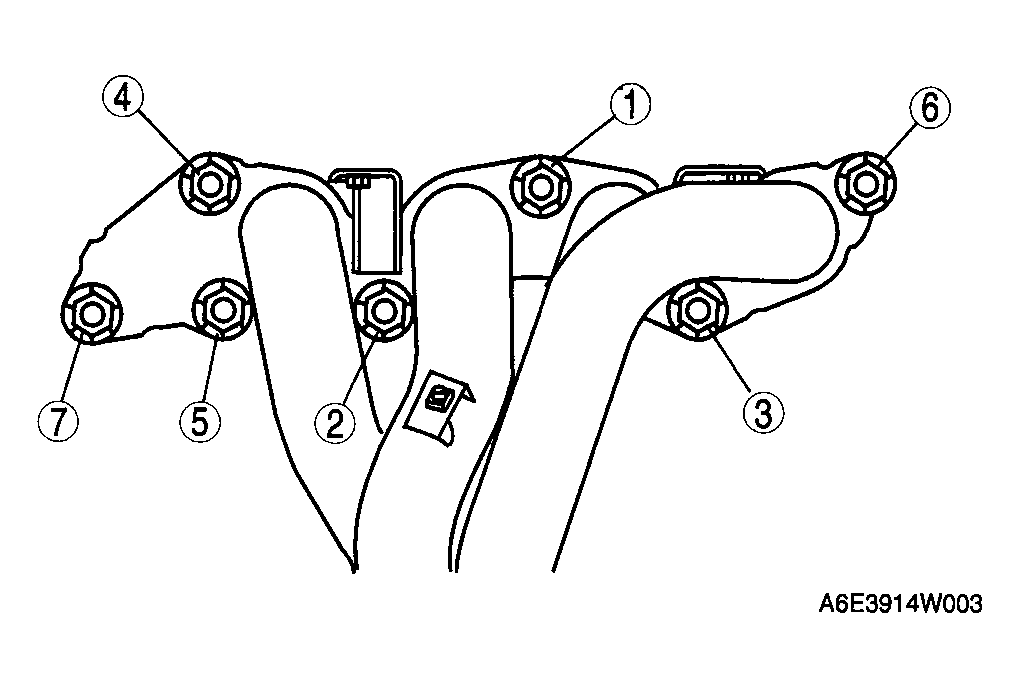

Fig 1: Exhaust Manifold Tightening Sequence (Except California Emissions)

Courtesy of MAZDA MOTORS CORP.
