Timing Chain Installation Note

WARNING: This page is about a different variant/trim than selected.
  1. Install the SST  to the camshaft as shown in the figure.
  2. Install the timing chain.
  3. Remove the retaining wire or paper clip from the auto tensioner to apply tension to the timing chain.

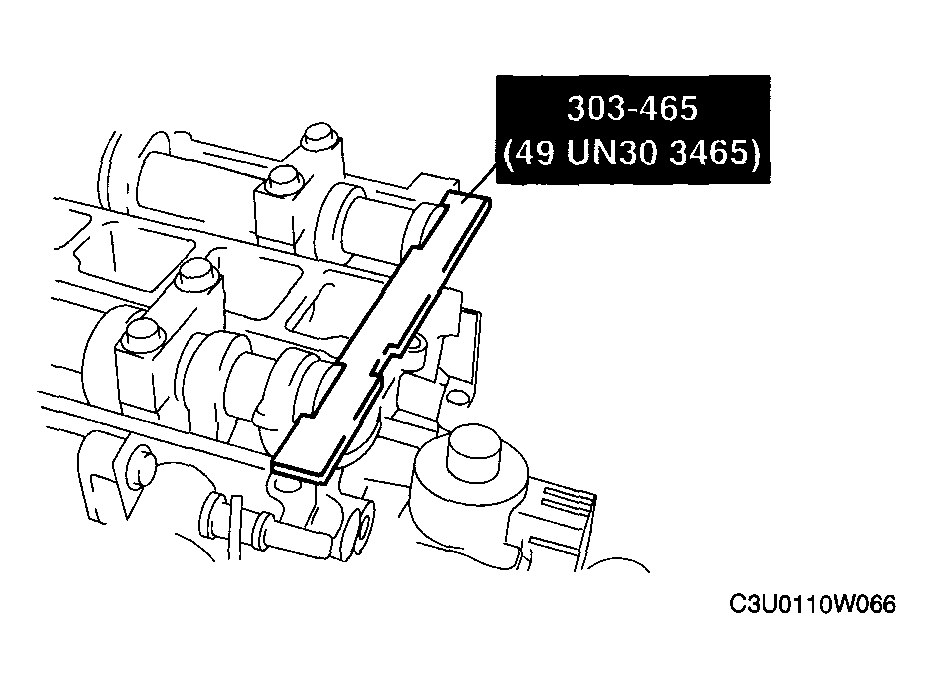

    Fig 1: Installing SST To Camshaft
    G04324329Courtesy of MAZDA MOTORS CORP.
