Oil Pump Sprocket Installation Note

WARNING: This page is about a different variant/trim than selected.
  1. Hold the oil pump sprocket using the SST  .

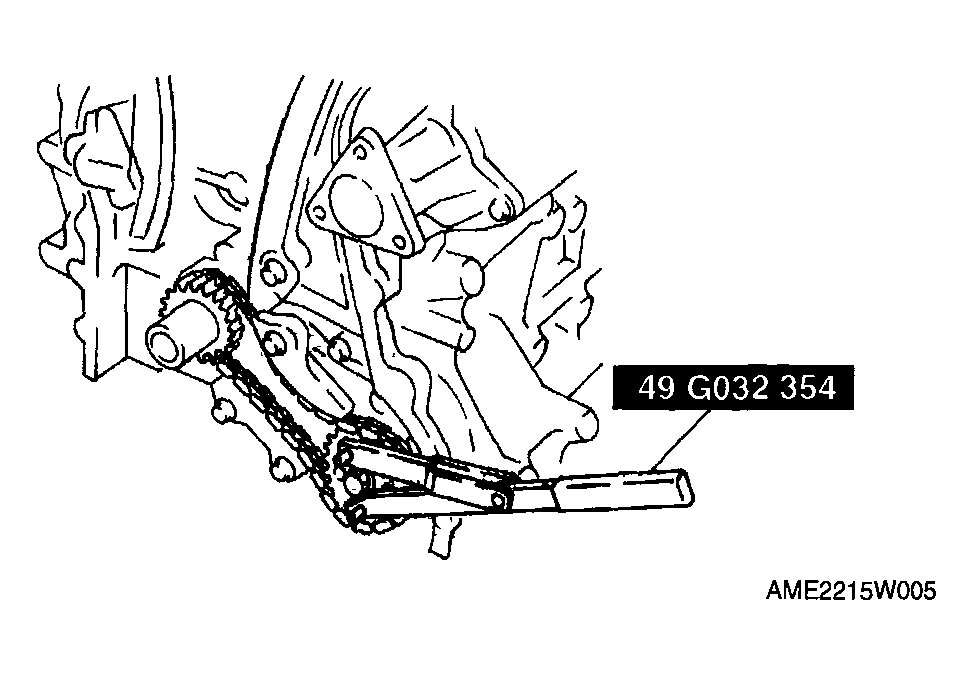

    Fig 1: Installing Oil Pump Sprocket Using SST
    G04324328Courtesy of MAZDA MOTORS CORP.
