No. 3 Engine Mount Rubber and No. 3 Engine Joint Bracket Installation Note

WARNING: This page is about a different variant/trim than selected.
  1. Tighten the stud bolt of the No. 3 engine mount bracket.

    Tightening torque

    7.0-13 N.m {71.4-132.5 kgf.cm, 62.0-115.0 in.lbf}

  2. Hand-tighten the No. 3 engine mount rubber and No. 3 engine joint bracket.

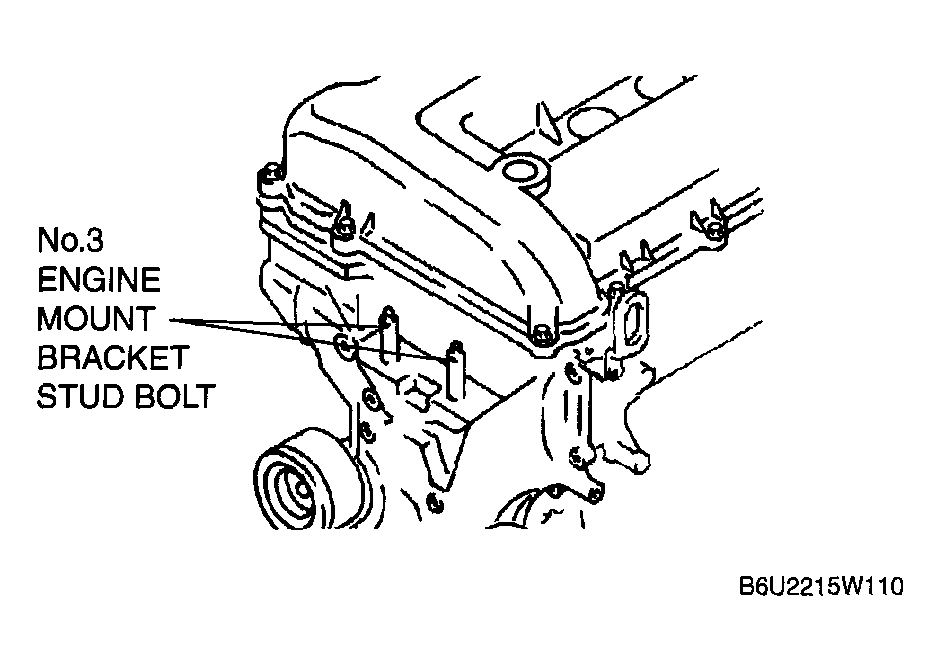

    Fig 1: Tightening Stud Bolt
    G04324334Courtesy of MAZDA MOTORS CORP.
  3. Tighten the bolts and nuts in the order shown in the figure.
    Fig 2: Tightening Bolts And Nuts
    G04324335Courtesy of MAZDA MOTORS CORP.
