Engine Front Cover Installation Note
WARNING: This page is about a different variant/trim than selected.
- Apply silicone sealant to the engine front cover as shown in the figure.CAUTION:
- Install the engine front cover within 10 min of applying the silicone sealant.
- Silicone sealant is not needed in the area indicated by C as shown in the figure as it is a seal.
Thickness
A: 2.0-3.0 mm {0.079-0.118 in}
B: 1.5-2.5 mm {0.059-0.098 in}

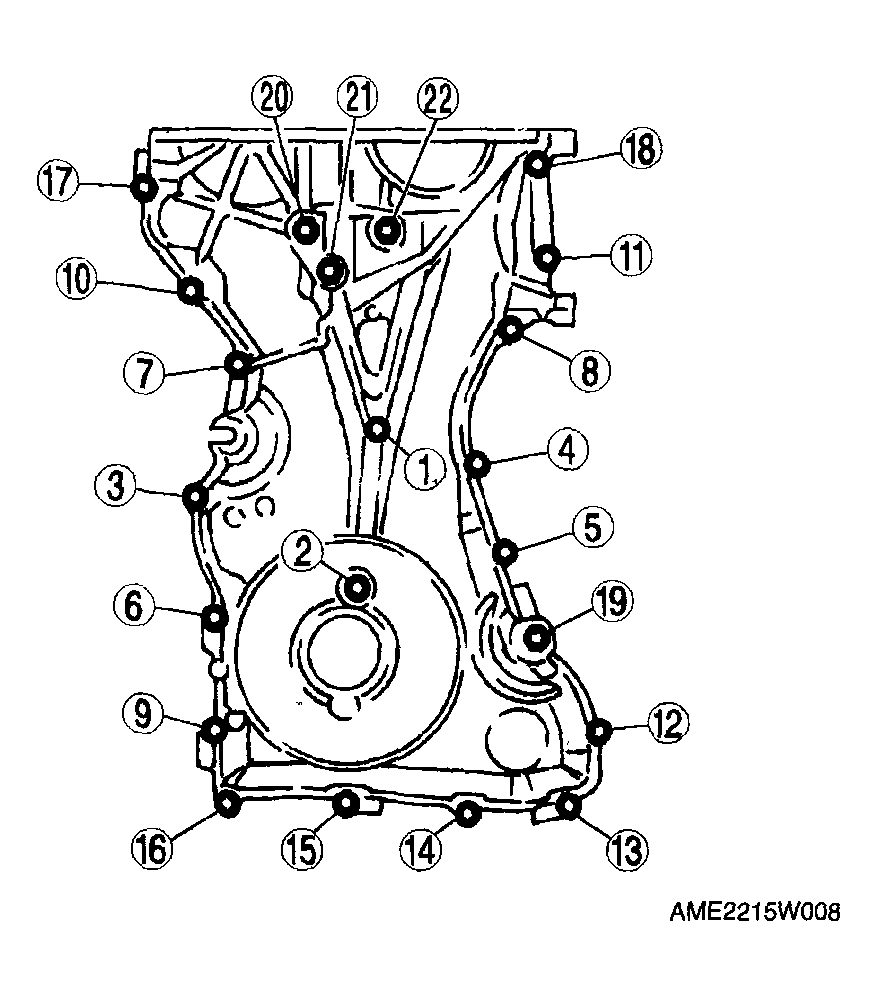

- Install the engine front cover bolts in the order as shown in the figure.TORQUE SPECIFICATIONS
Bolt No. Torque 1-18 8.0-11.5 N.m {81.6-117.2 kgf.cm, 70.9-101.7 in.lbf} 19-22 40-55 N.m {4.1-5.6 kgf.m, 29.7-40.5 ft.lbf}
