Cylinder Head Cover Installation Note

WARNING: This page is about a different variant/trim than selected.

Apply silicone sealant to the mating faces as shown in the figure.
CAUTION:
- Install the cylinder head cover within 10 min of applying the silicone sealant.
Thickness

4.0-6.0 mm {0.16-0.23 in}

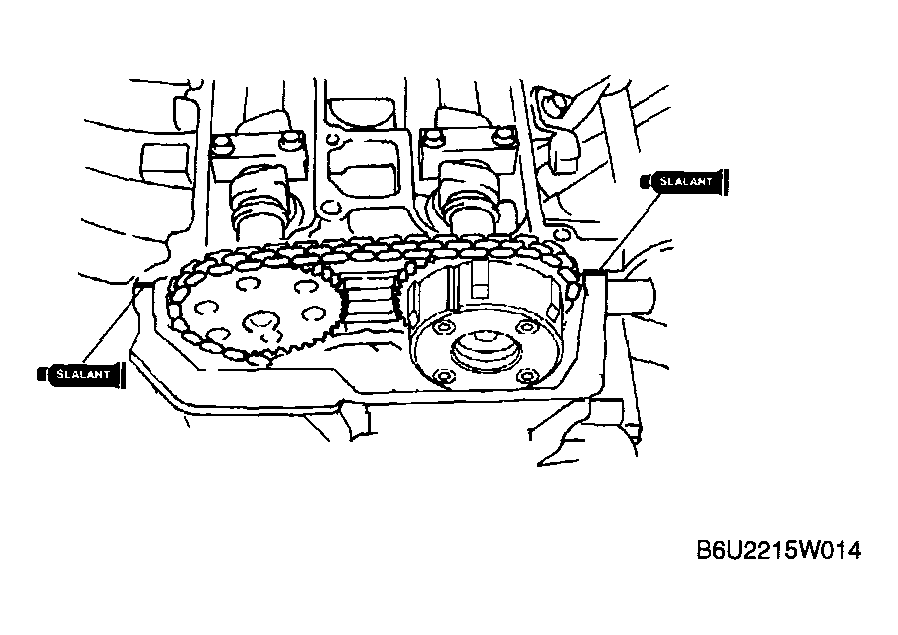

Fig 1: Applying Silicone Sealant To Cylinder Head Cover
Courtesy of MAZDA MOTORS CORP.
Install the cylinder head cover with a new gasket.
Tighten the bolts in the order shown in the figure.
Tightening torque

8.0-10.5 N.m {81.6-107.1 kgf.cm, 70.9-92.9 in.lbf}

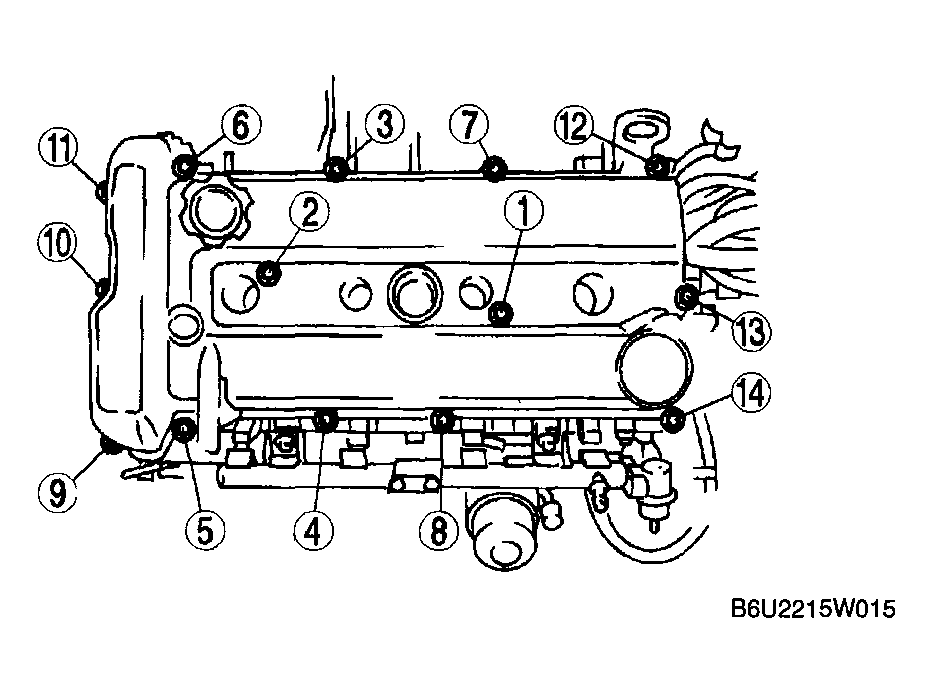

Fig 2: Tightening Cylinder Head Cover Bolts
Courtesy of MAZDA MOTORS CORP.
