Crankshaft Pulley Lock Bolt Removal Note

WARNING: This page is about a different variant/trim than selected.
  1. Remove the cylinder block lower blind plug.
  2. Install the SST  .
  3. Rotate the crankshaft clockwise until the crankshaft is in the No. 1 cylinder TDC position (until the balance weight is contacting to the SST  ).

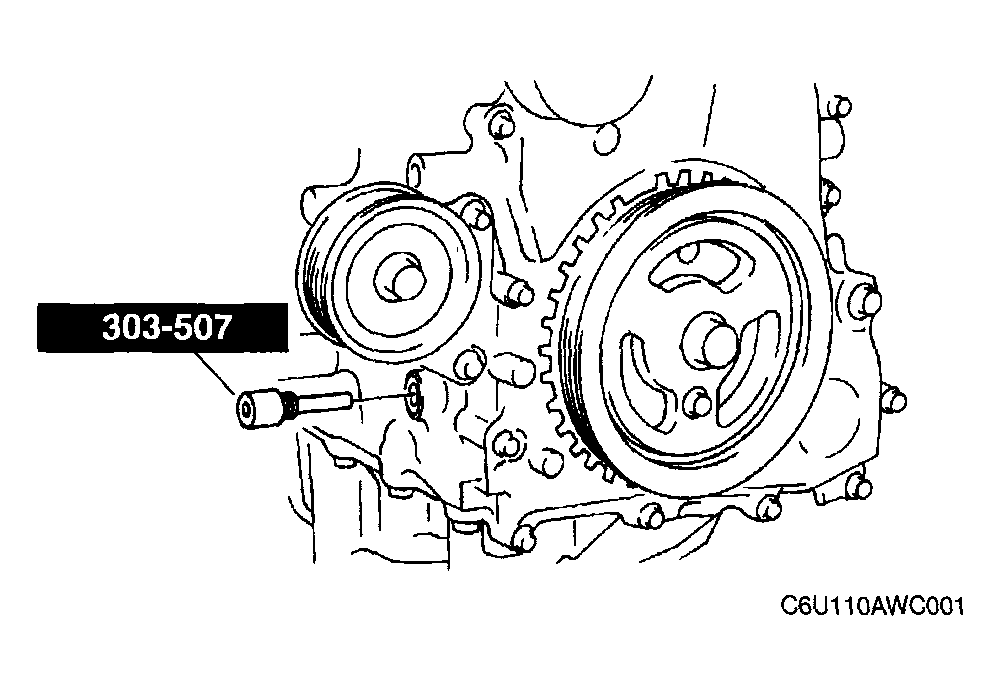

    Fig 1: Installing SST
    G04324319Courtesy of MAZDA MOTORS CORP.
  4. Hold the crankshaft pulley using the SSTs  .

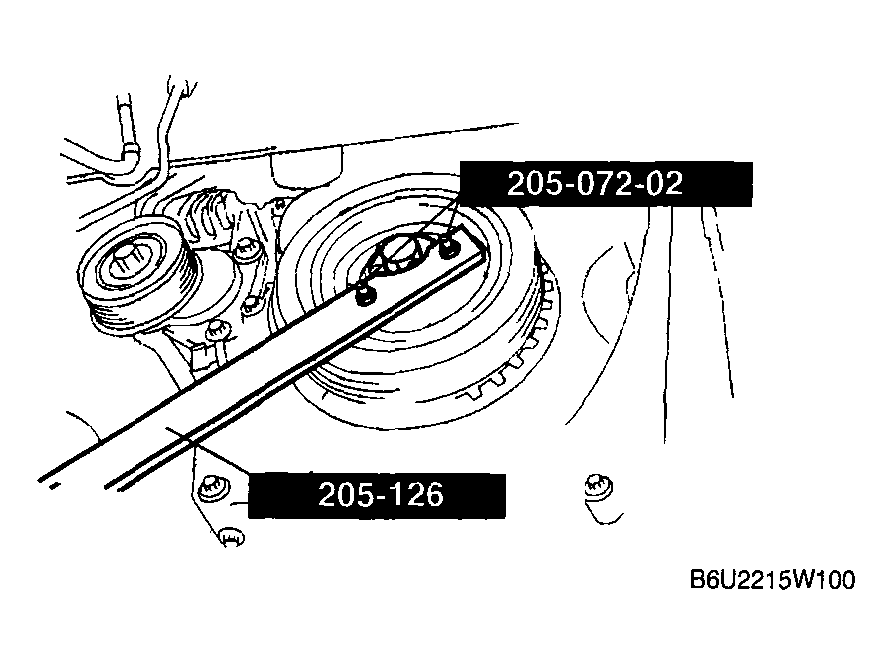

    Fig 2: Holding Crankshaft Pulley Using SST
    G04324320Courtesy of MAZDA MOTORS CORP.
