Rear Oil Seal Replacement: Notes

WARNING: This page is about a different variant/trim than selected.
  1. Remove the flywheel. (MTX) (See CLUTCH UNIT REMOVAL/INSTALLATION [G35M-R, A65M-R] ).
  2. Remove the drive plate. (ATX) (See DRIVE PLATE REMOVAL/INSTALLATION ). (See DRIVE PLATE REMOVAL/INSTALLATION ).
  3. Remove in the order indicated in the table.
  4. Install in the reverse order of removal.

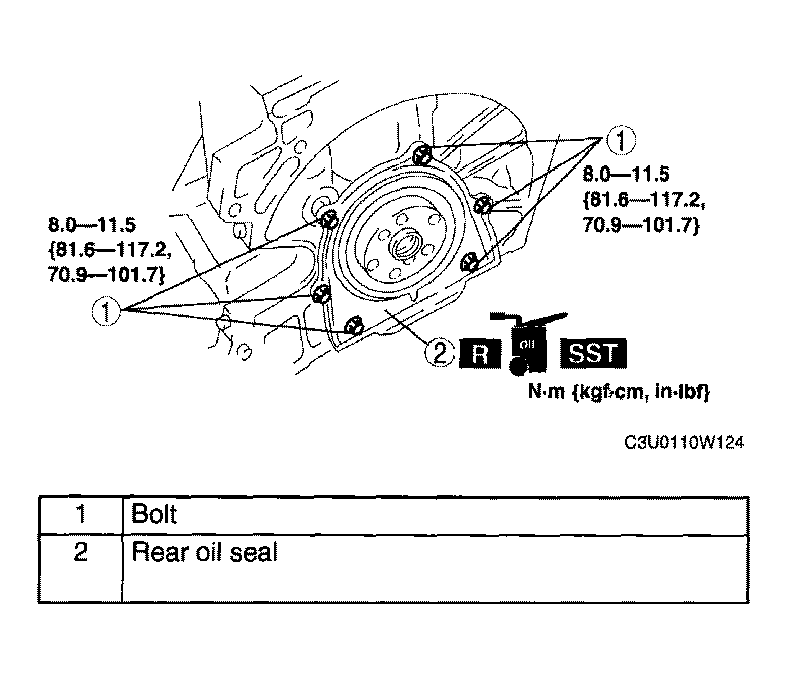

    Fig 1: Rear Oil Seal Plate Bolts & Torque Specification
    G04324359Courtesy of MAZDA MOTORS CORP.
