Plug Hole Plate Removal/Installation

WARNING: This page is about a different variant/trim than selected.
  1. Remove the plug hole plate.
    NOTE:
    • Lift off and remove the plug hole plate from the installation areas (rubber and clips) as shown in the figure.
  2. Install the plug hole plate.

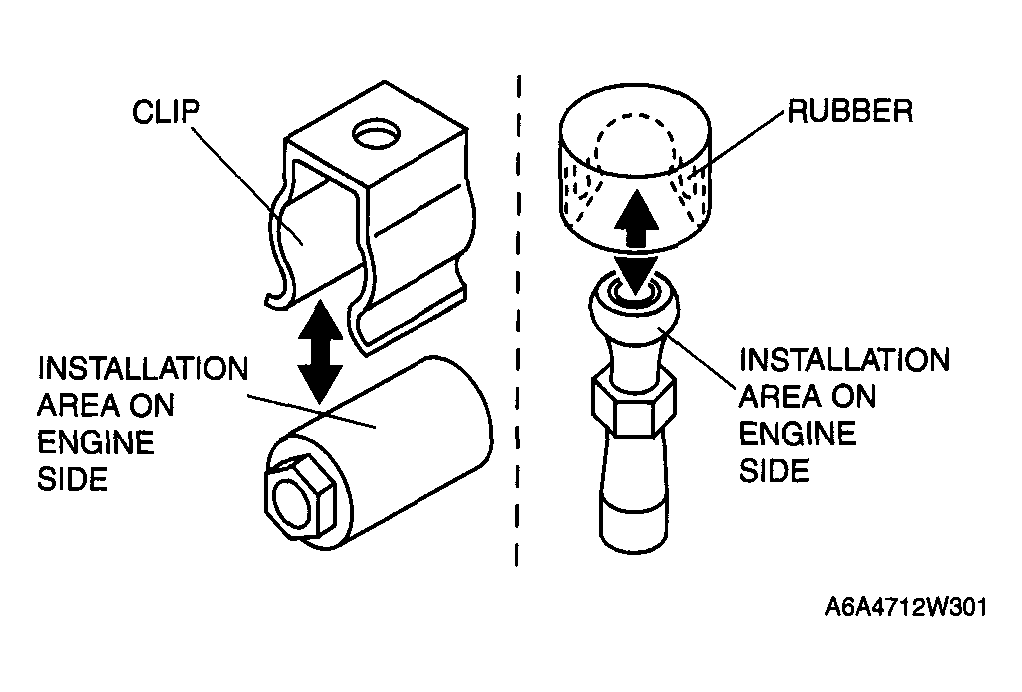

    Fig 1: Identifying Rubber And Clips
    G04324300Courtesy of MAZDA MOTORS CORP.
    Fig 2: Installing Plug Hole Plate
    G04324301Courtesy of MAZDA MOTORS CORP.
