Front Oil Seal Removal Note

WARNING: This page is about a different variant/trim than selected.
  1. Cut the oil seal lip using a razor knife.
  2. Remove the oil seal using a screwdriver wrapped with a rag.

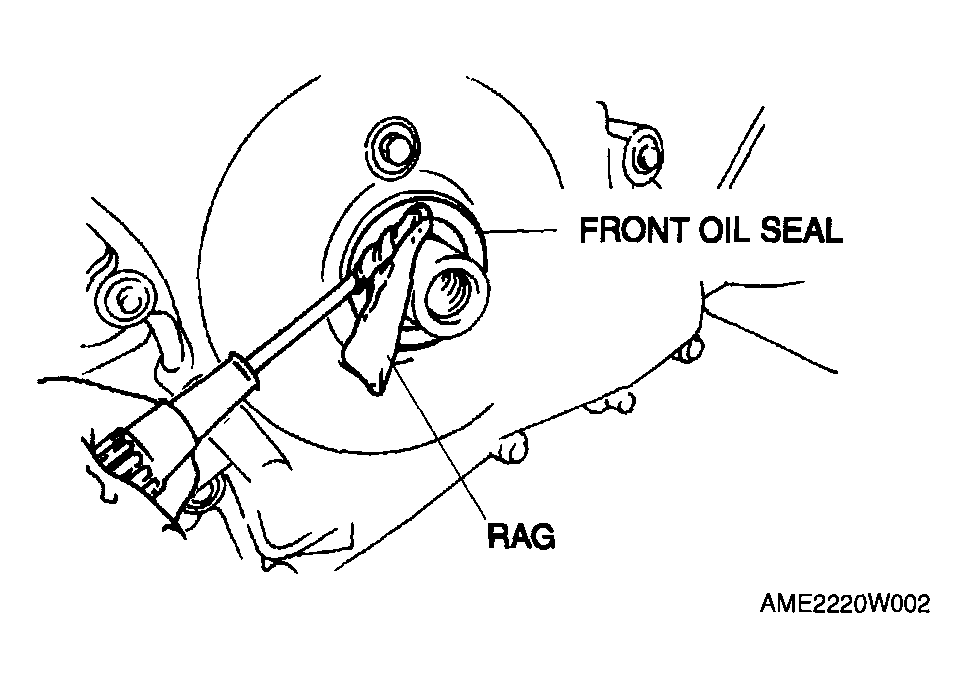

    Fig 1: Removing Oil Seal Using Screwdriver
    G04324352Courtesy of MAZDA MOTORS CORP.
