No. 4 Engine Mount Bracket and No. 4 Engine Mount Rubber Removal Note

WARNING: This page is about a different variant/trim than selected.
  1. Secure the engine and the transaxle using a hoist.

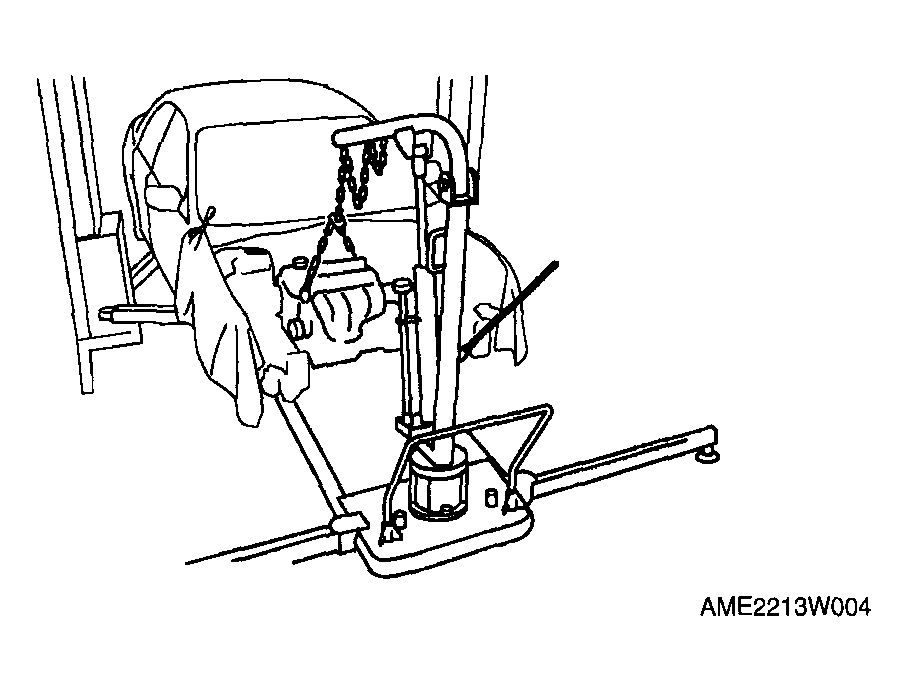

    Fig 1: Securing Engine And Transaxle Using Hoist
    G04324366Courtesy of MAZDA MOTORS CORP.
  2. Remove the No. 4 engine mount bracket and engine mount rubber together as a unit.
    Fig 2: Removing Engine Mount Bracket And Engine Mount Rubber
    G04324367Courtesy of MAZDA MOTORS CORP.
