No. 4 Engine Mount Bracket and No. 4 Engine Mount Rubber Installation Note
WARNING: This page is about a different variant/trim than selected.

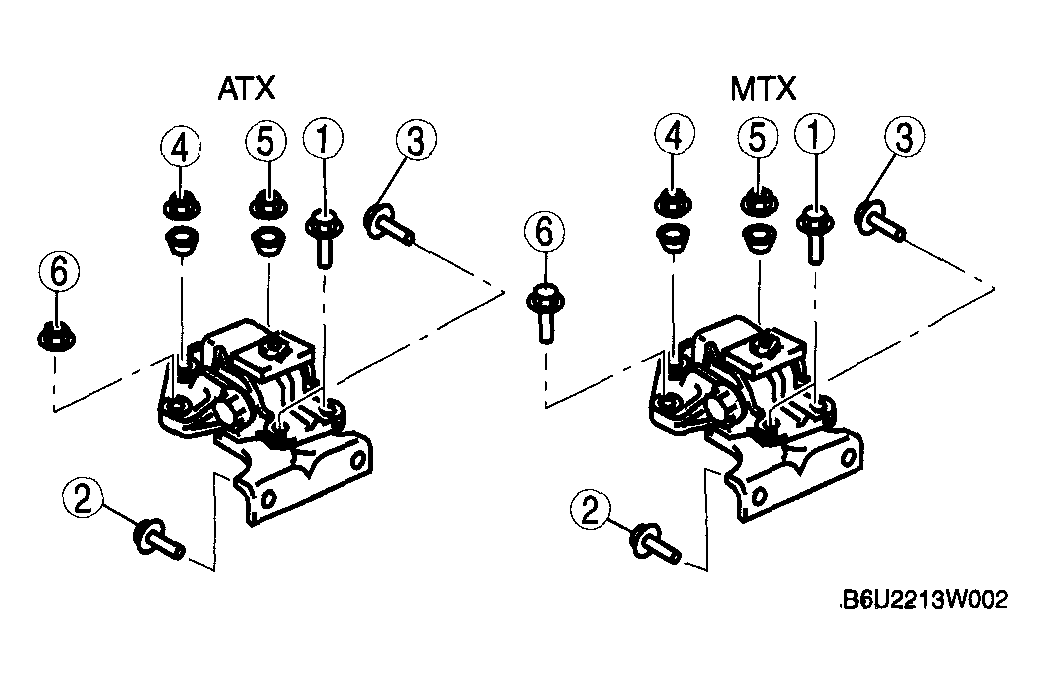

- Tighten the No. 4 engine mount bracket and No. 4 engine mount rubber bolt and nut in the order as shown.
TIGHTENING TORQUE SPECIFICATION
| Bolt and nut No. |
Tightening torque (N.m {kgf.m, ft.lbf}) |
| 1,2,3 |
74.5-100.9 {7.6-10.2, 55.0-74.4} |
| 4,5,6 |
66.6-93.1 {6.80-9.49, 49.2-68.6} |
Courtesy of MAZDA MOTORS CORP.
