No. 3 Engine Joint Bracket Installation Note

WARNING: This page is about a different variant/trim than selected.

Tighten the No. 3 engine mount bracket stud bolt.
Tightening torque

7.0-13 N.m {71.4-132.5 kgf.cm, 62.0-115.0 in.lbf}

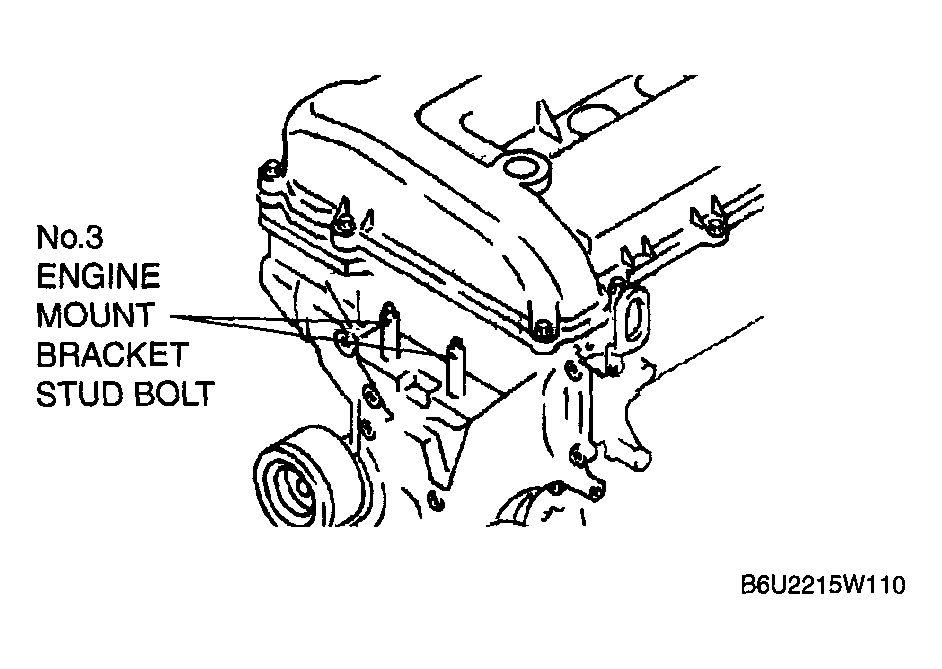

Fig 1: Tightening Engine Mount Bracket Stud Bolt
Courtesy of MAZDA MOTORS CORP.
Tighten the No. 3 engine joint bracket bolt and nut in the order as shown.
Tightening torque

74.5-104.9 N.m {7.6-10.6 kgf.m, 55.0-76.6 ft.lbf}

Fig 2: Tightening Engine Joint Bracket Bolt And Nut
Courtesy of MAZDA MOTORS CORP.
