No. 1 Engine Mount Rubber Removal Note

WARNING: This page is about a different variant/trim than selected.
  1. Remove through bolt A on the No. 1 engine mount bracket side.
  2. Loosen through bolt B on the crossmember side until approximately three pitches are showing.
    NOTE:
    • Do not remove the No. 1 engine mount rubber from the vehicle.

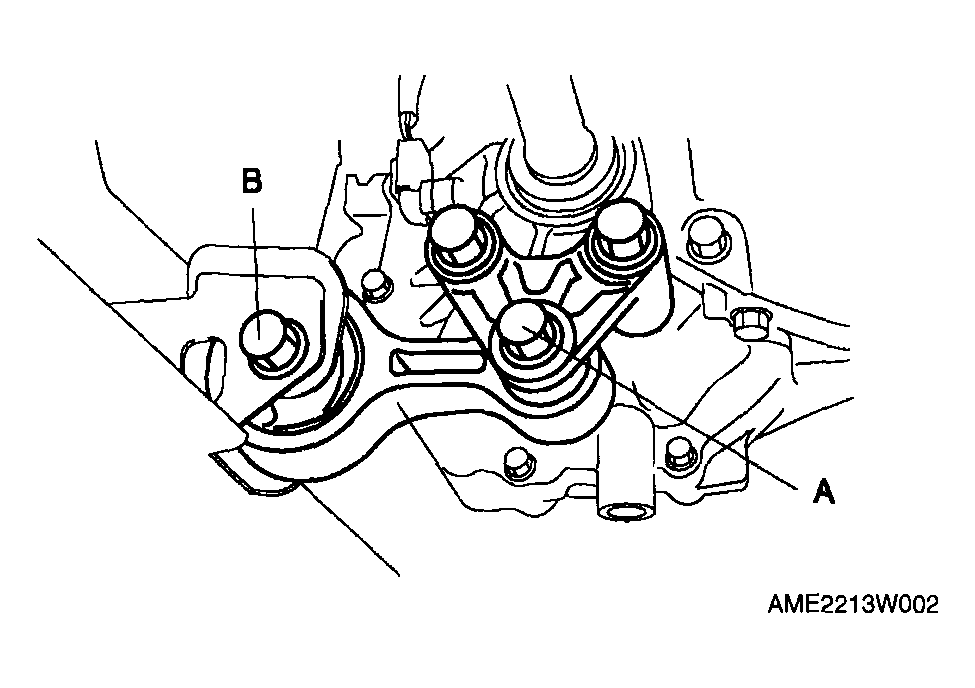

      Fig 1: Removing Bolt And Engine Mount Bracket Side
      G04324364Courtesy of MAZDA MOTORS CORP.

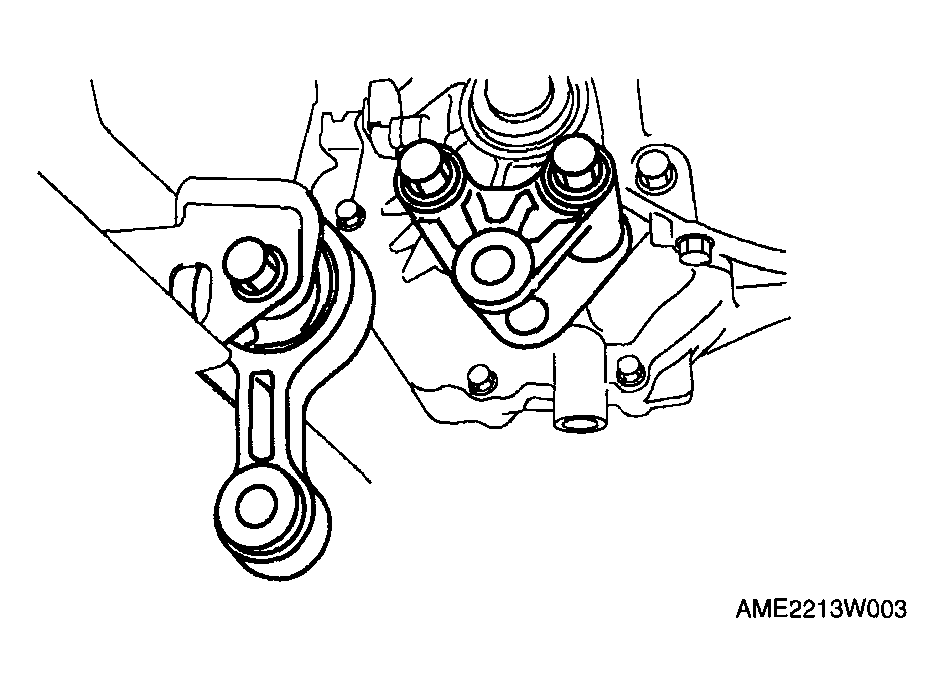

      Fig 2: Loosening On Crossmember Side
      G04324365Courtesy of MAZDA MOTORS CORP.
