No. 1 Engine Mount Bracket Installation Note

WARNING: This page is about a different variant/trim than selected.

Tighten No. 1 engine mount bracket bolt A.
Tightening torque

93.1-116.6 N.m {9.5-11.8 kgf.m, 68.7-85.9 ft.lbf}
Tighten No. 1 engine mount bracket bolt B.
Tightening torque

93.1-116.6 N.m {9.5-11.8 kgf.m, 68.7-85.9 ft.lbf}

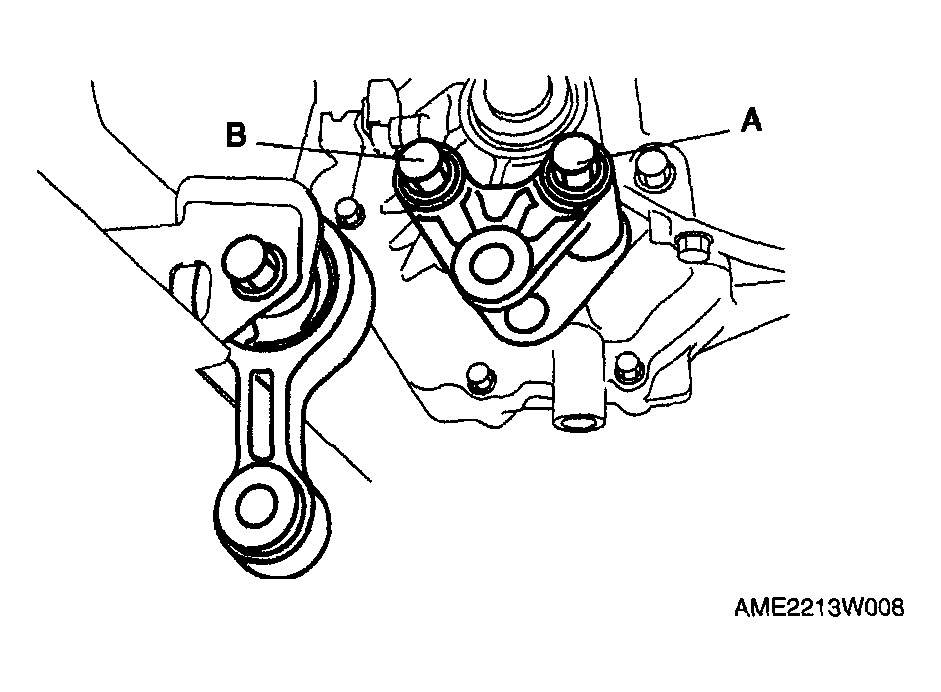

Fig 1: Tightening Engine Mount Bracket Bolt
Courtesy of MAZDA MOTORS CORP.
