Drive Belt Auto TENSIONER Inspection

WARNING: This page is about a different variant/trim than selected.
  1. Remove the drive belt. (See DRIVE BELT REPLACEMENT ).
  2. Verify that the drive belt auto tensioner moves smoothly in the operational direction.
    • Replace the drive belt auto tensioner if necessary.
  3. Turn the drive belt auto tensioner pulley by hand and verify that it rotates smoothly.
    • Replace the drive belt auto tensioner if necessary.
  4. Install the drive belt. (See DRIVE BELT REPLACEMENT ).

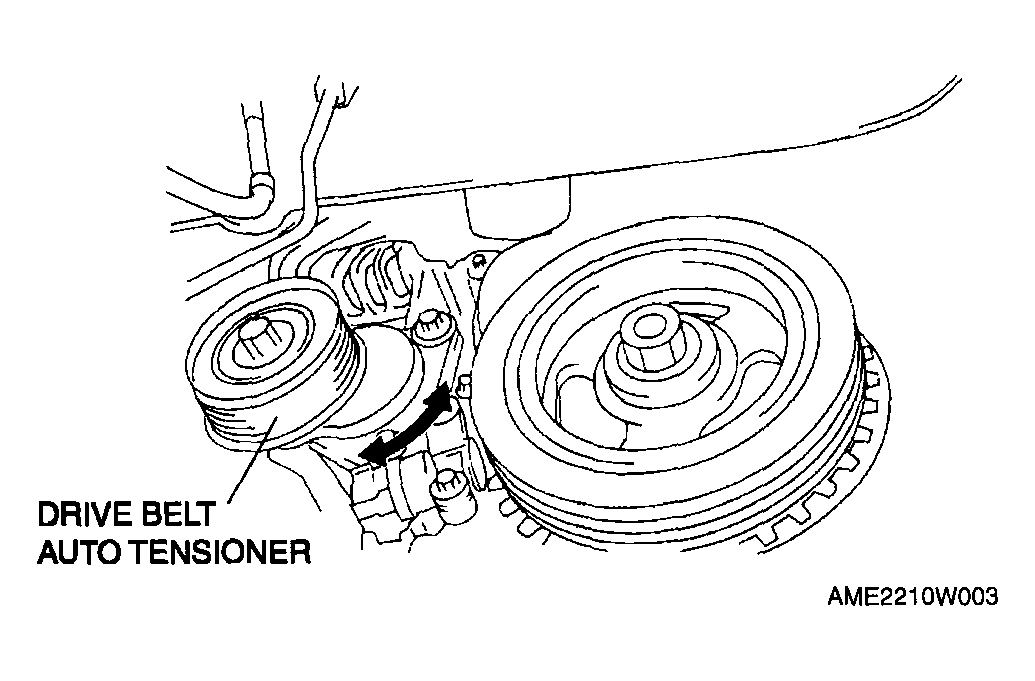

    Fig 1: Inspecting Drive Belt Auto Tensioner
    G04324299Courtesy of MAZDA MOTORS CORP.
