Cylinder Head Removal Note

WARNING: This page is about a different variant/trim than selected.
  1. Loosen the cylinder head bolts in two or three steps in the order shown in the figure.

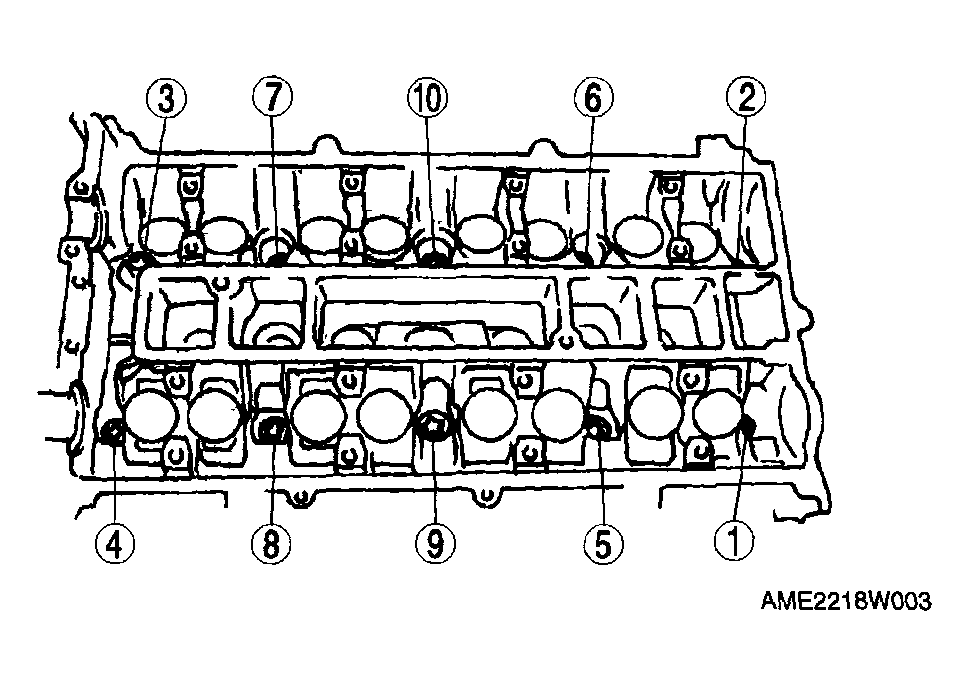

    Fig 1: Loosening Cylinder Head Bolts
    G04324345Courtesy of MAZDA MOTORS CORP.
