Secondary Gear And Output Gear Disassembly/Assembly: Notes

WARNING: This page is about a different variant/trim than selected.
  1. Remove the following parts. (See AUTOMATIC TRANSAXLE DISASSEMBLY .)
    • Torque converter
    • Oil pump
    • Converter housing
    • Differential
  2. Disassemble in the order indicated in the table.
  3. Assemble in the reverse order of disassembly.

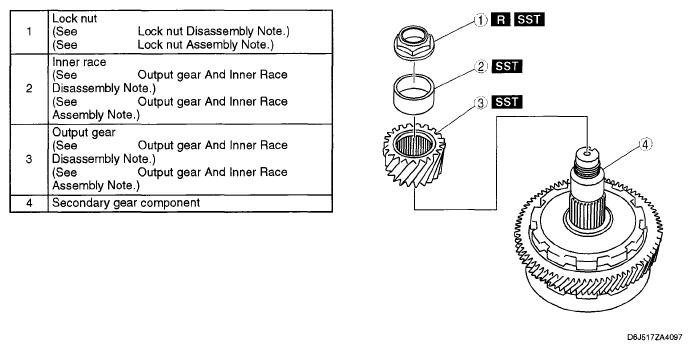

Fig 1: Identifying Secondary Gear And Output Gear
G05118761Courtesy of MAZDA MOTORS CORP.
