SECONDARY CONTROL VALVE BODY DISASSEMBLY/ASSEMBLY Secondary Control Valve Body Disassembly: Notes

CAUTION:

• Denting or scratching these components will reduce the ability of the transaxle to shift properly. When handling these components or the valve body that contains them, be careful not to drop or hit them.

1. Disassemble in the order indicated in the table.
2. Neatly arrange the removed parts to avoid confusing the similar parts.
   WARNING:

   • Using compressed air can cause dirt and other particles to fly out, causing injury to the eyes. Wear protective eye wear whenever using compressed air.
3. Clean the removed parts with cleaning solvent, then use compressed air to dry them. Use compressed air to clean out all holes and passages.

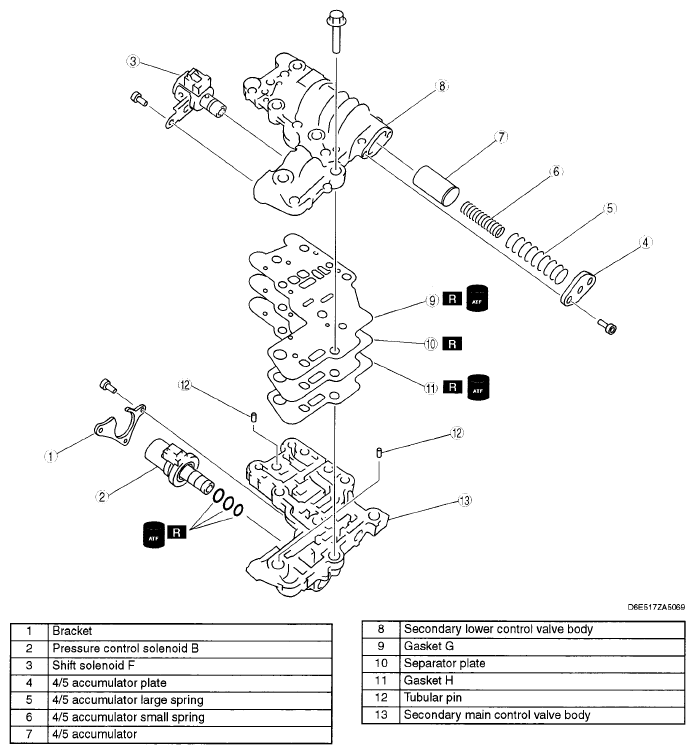

Fig 1: Identifying Secondary Control Valve Body Components

Courtesy of MAZDA MOTORS CORP.
