Reduction Brake Disassembly/Assembly: Notes

WARNING: This page is about a different variant/trim than selected.
  1. Perform the preinspection before disassembly.

    (See REDUCTION BRAKE PREINSPECTION .)

  2. Disassemble in the order indicated in the table.
  3. Assemble in the reverse order of disassembly.

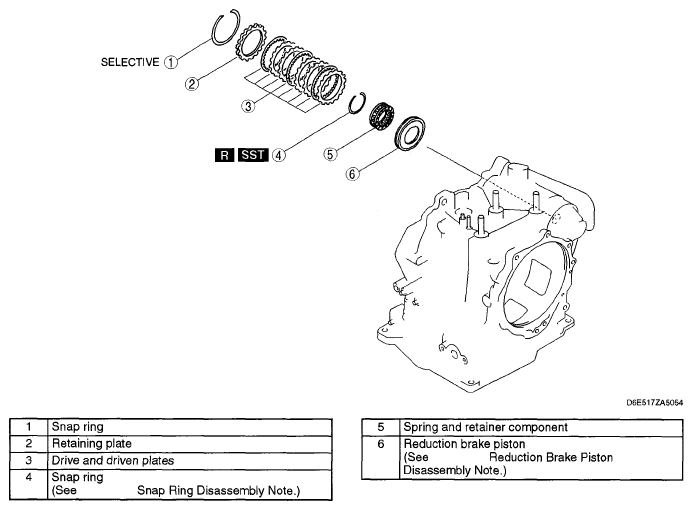

    Fig 1: Exploded View Of Reduction Brake Components
    G05118746Courtesy of MAZDA MOTORS CORP.
