Primary Control Valve Body Assembly

WARNING: This page is about a different variant/trim than selected.
  1. Verify that all parts are clean and free of dust and other small particles.
  2. Apply ATF to all parts.
  3. Assemble in the reverse order of disassembly.

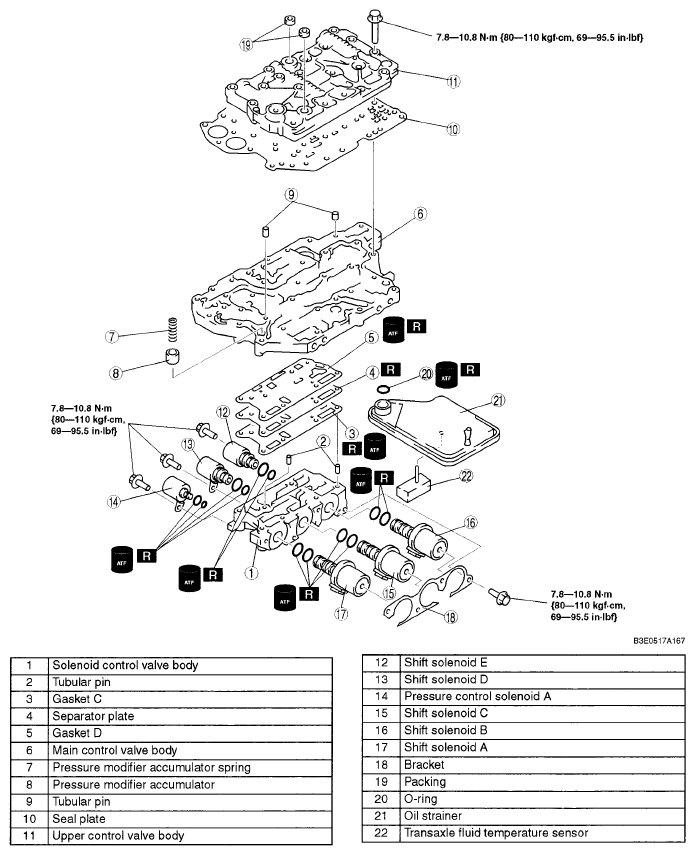

Fig 1: Primary Control Valve Body Assembly Replacement Components With Torque Specifications
G05118791Courtesy of MAZDA MOTORS CORP.
