Forward Clutch Disassembly/Assembly: Notes

WARNING: This page is about a different variant/trim than selected.
  1. Perform the preinspection before disassembly. (See FORWARD CLUTCH PREINSPECTION .)
  2. Disassemble in the order indicated in the table.
  3. Assemble in the reverse order of disassembly.

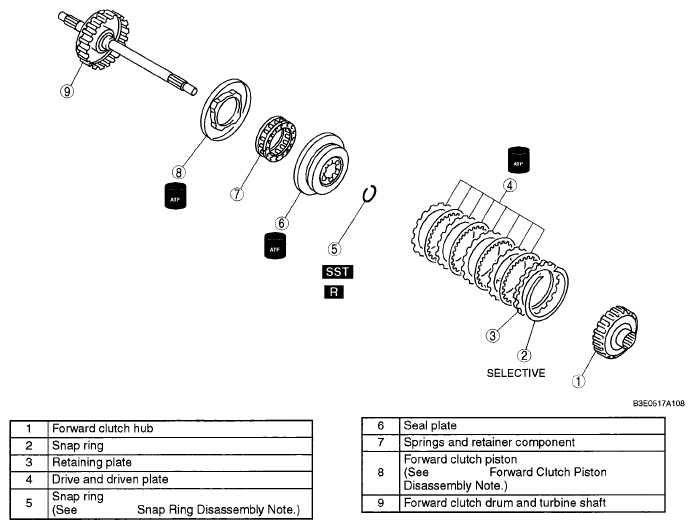

    Fig 1: Identifying Forward Clutch Components
    G05118677Courtesy of MAZDA MOTORS CORP.
