Direct Clutch Disassembly/Assembly: Notes

WARNING: This page is about a different variant/trim than selected.
  1. Perform the preinspection before disassembly. (See DIRECT CLUTCH PREINSPECTION .)
  2. Disassemble in the order indicated in the table.
  3. Assemble in the reverse order of disassembly.

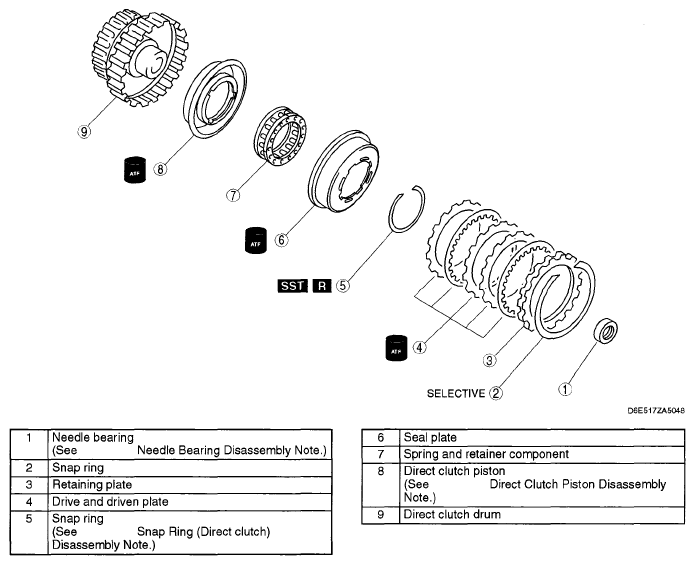

Fig 1: Exploded View Of Direct Clutch Components
G05118733Courtesy of MAZDA MOTORS CORP.
