Differential Assembly

WARNING: This page is about a different variant/trim than selected.
  1. Assemble in the reverse order of disassembly.

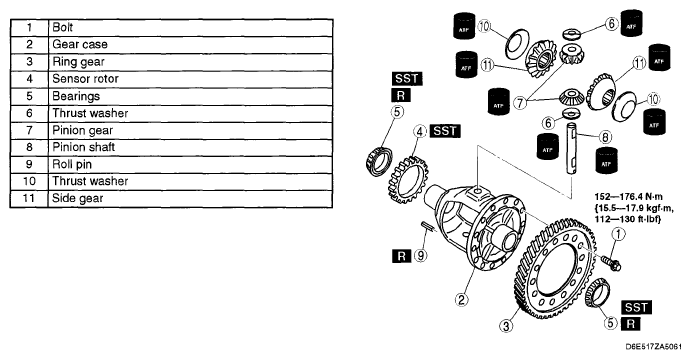

Fig 1: Differential Assembly Replacement Components With Torque Specifications
G05118827Courtesy of MAZDA MOTORS CORP.
