Clutch Component Disassembly/Assembly: Notes

WARNING: This page is about a different variant/trim than selected.
  1. Perform the preinspection before disassembly. (See CLUTCH COMPONENT PREINSPECTION .)
  2. Disassemble in the order indicated in the table.
  3. Assemble in the reverse order of disassembly.

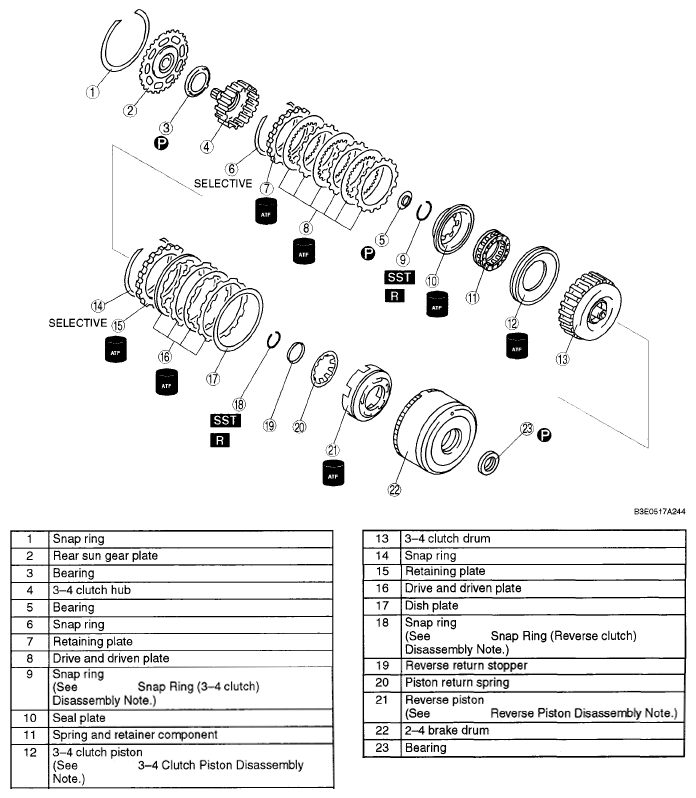

Fig 1: Identifying Clutch Components
G05118690Courtesy of MAZDA MOTORS CORP.
