Automatic Transaxle Disassembly: Disassembly: Components

WARNING: This page is about a different variant/trim than selected.

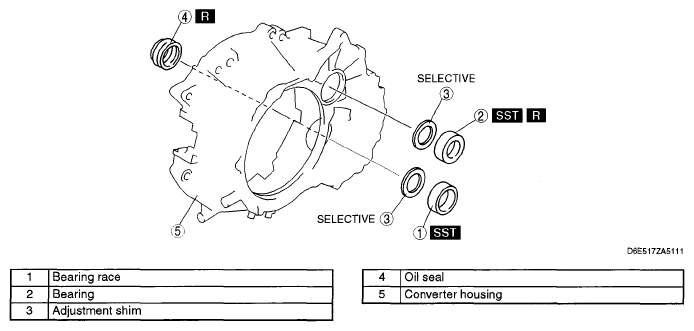

Fig 1: Exploded View Of Automatic Transaxle Components (1 Of 4)

Courtesy of MAZDA MOTORS CORP.

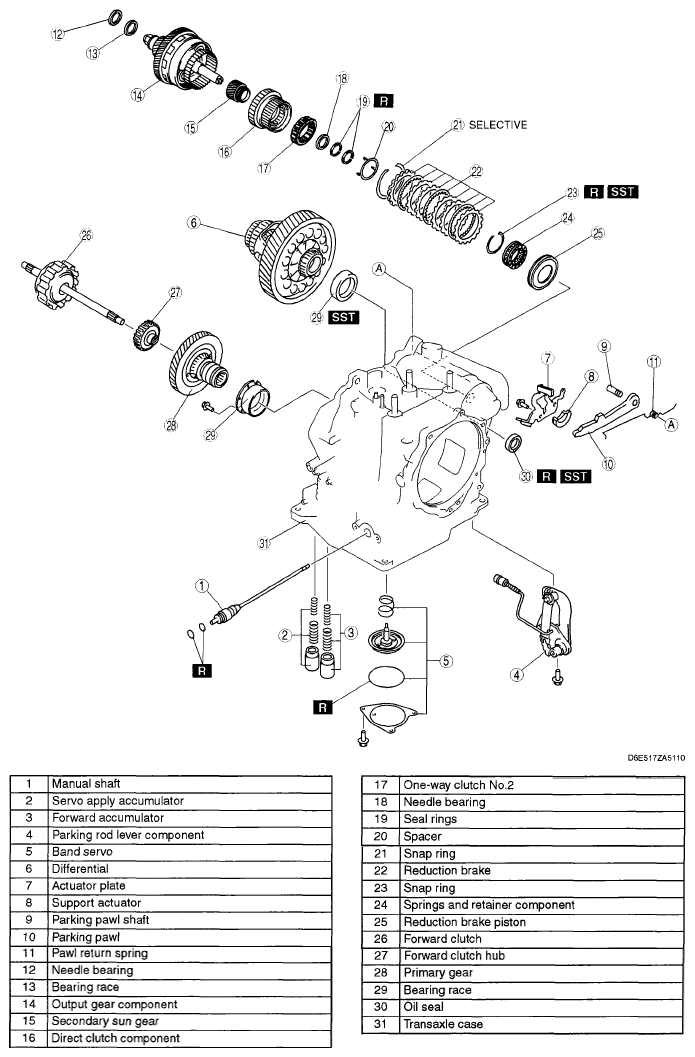

Fig 2: Exploded View Of Automatic Transaxle Components (2 Of 4)

Courtesy of MAZDA MOTORS CORP.

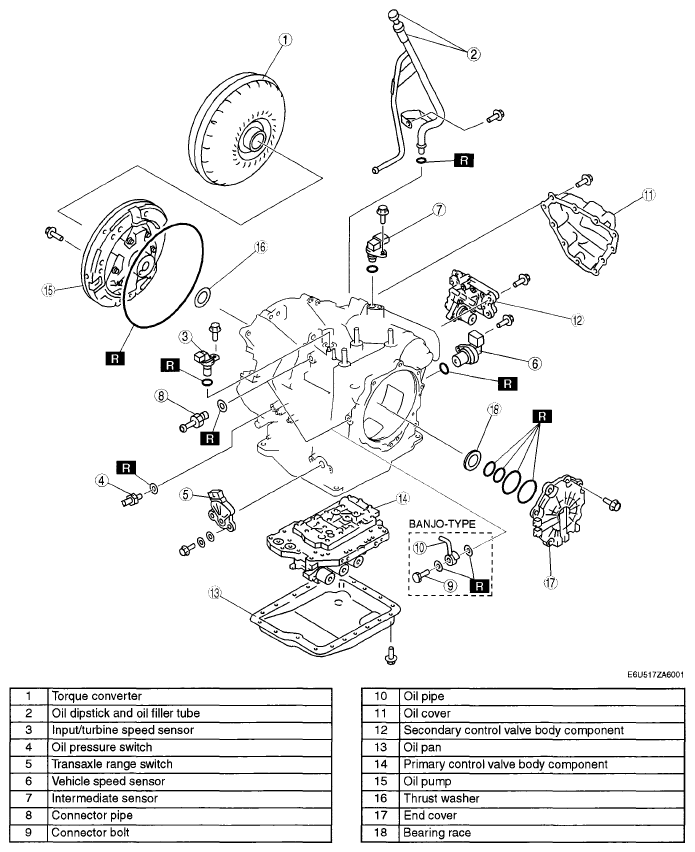

Fig 3: Exploded View Of Automatic Transaxle Components (3 Of 4)

Courtesy of MAZDA MOTORS CORP.

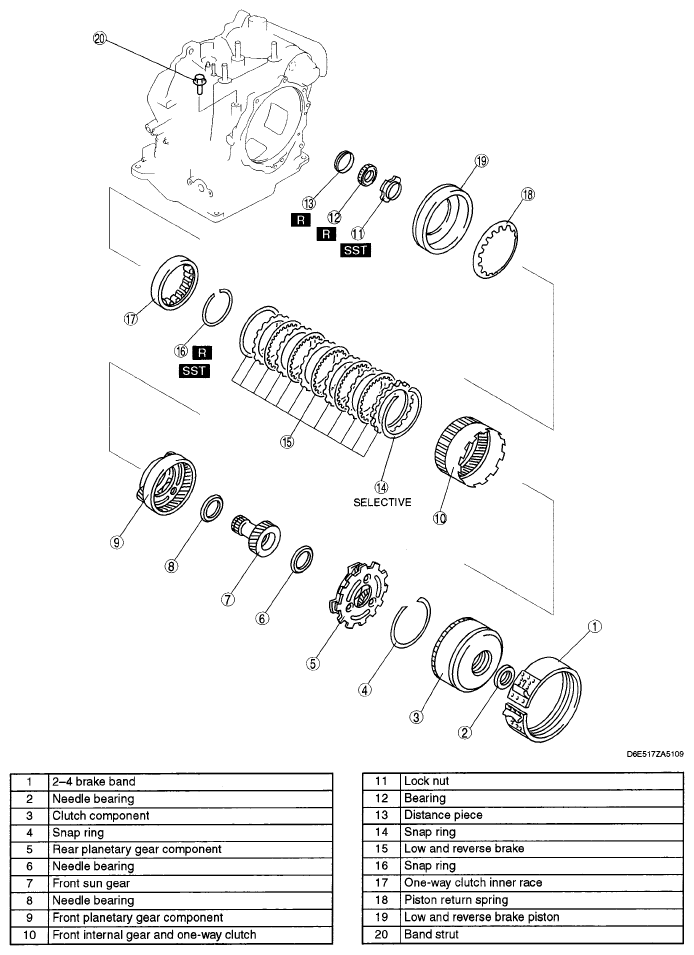

Fig 4: Exploded View Of Automatic Transaxle Components (4 Of 4)

Courtesy of MAZDA MOTORS CORP.
