Automatic Transaxle Assembly: Components

WARNING: This page is about a different variant/trim than selected.

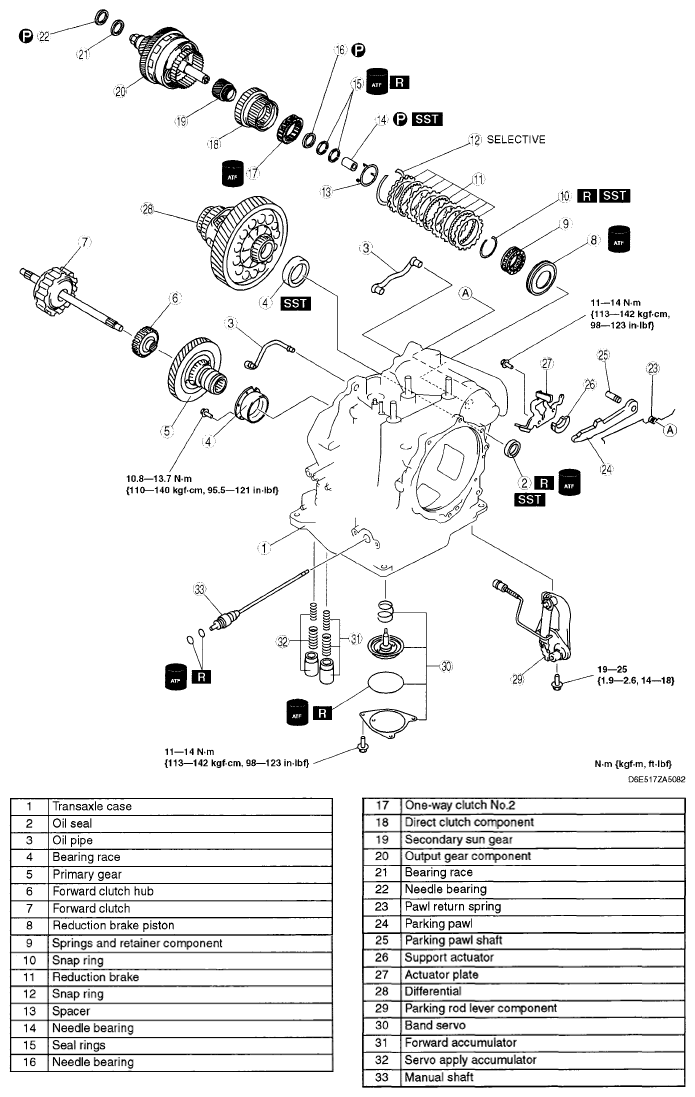

Fig 1: Identifying Automatic Transaxle Components (1 Of 4)

Courtesy of MAZDA MOTORS CORP.

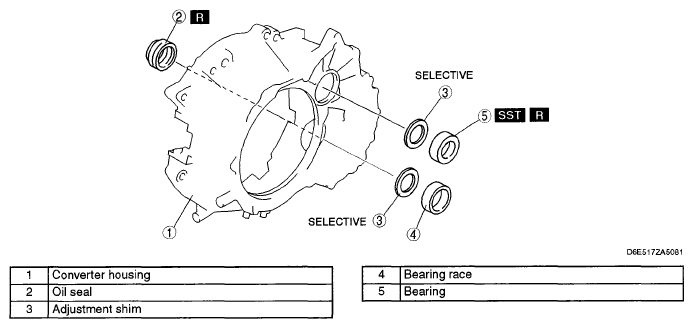

Fig 2: Automatic Transaxle Replacement Components With Torque Specifications (2 Of 4)

Courtesy of MAZDA MOTORS CORP.

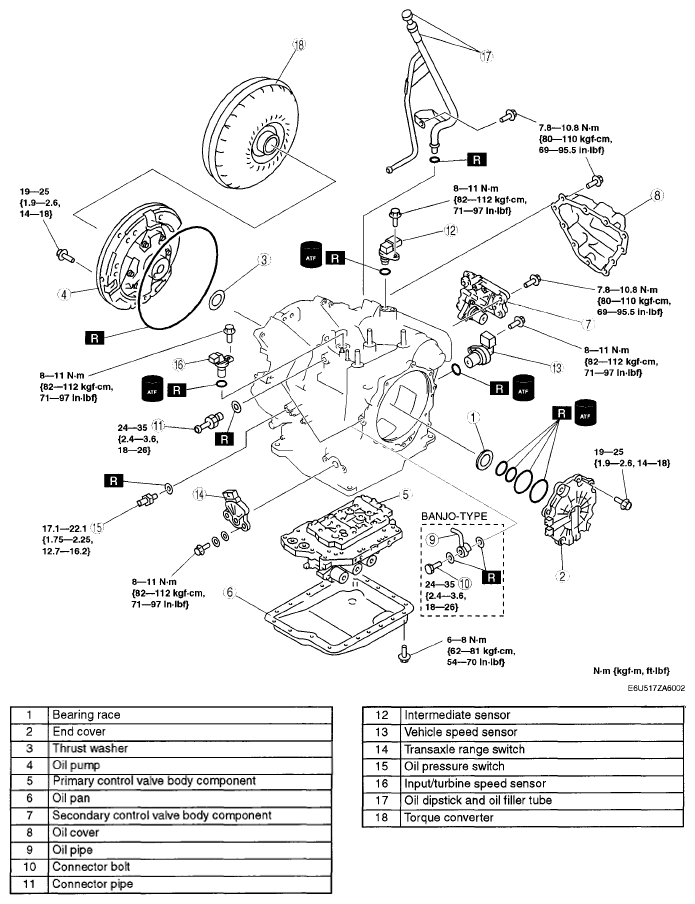

Fig 3: Automatic Transaxle Replacement Components With Torque Specifications (3 Of 4)

Courtesy of MAZDA MOTORS CORP.

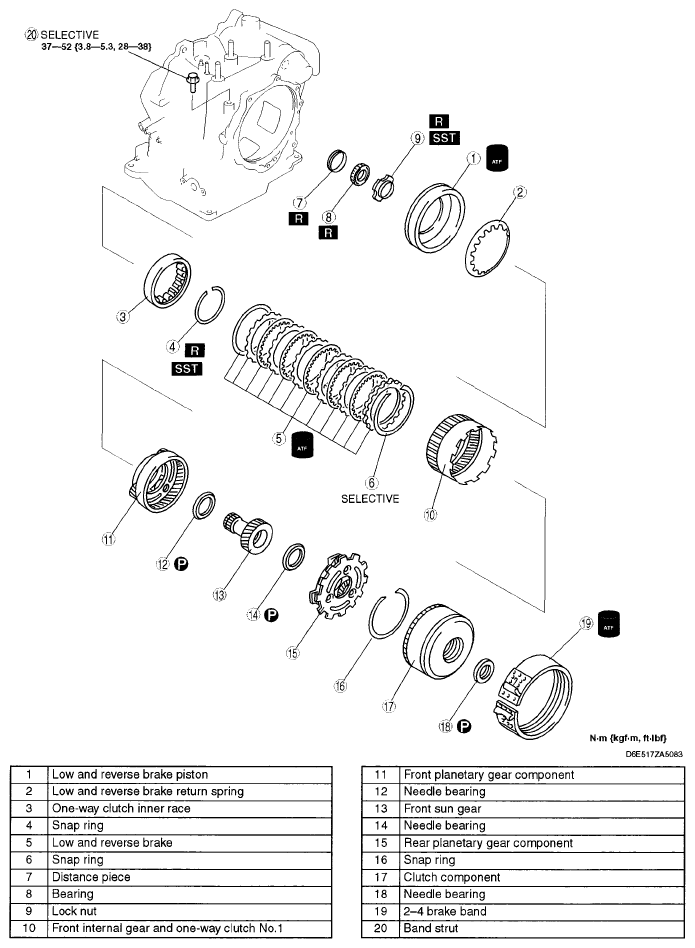

Fig 4: Automatic Transaxle Replacement Components With Torque Specifications (4 Of 4)

Courtesy of MAZDA MOTORS CORP.
