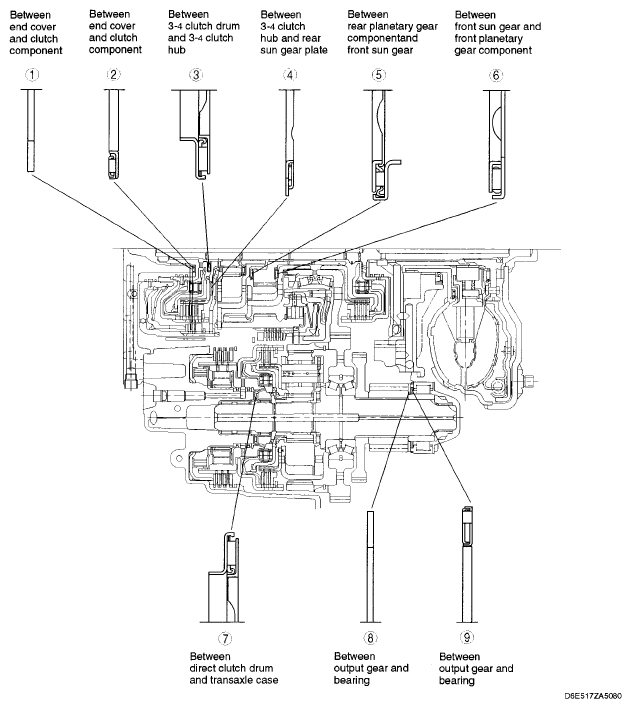

Bearing and race locations
WARNING: This page is about a different variant/trim than selected.
NOTE:
- The bearing and race at locations 3, 4, 5, 6 and 7 are one-piece units.
Outer diameter of bearing and race
OUTER DIAMETER OF BEARING AND RACE
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | |
|---|---|---|---|---|---|---|---|---|---|
| Bearing (mm {in}) | - | 40.0 {1.57} | 39.0 {1.54} | 78.2 {3.08} | 52.0 {2.05} | 50.0 {1.97} | 46.5 {1.83} | - | 61.0 {2.40} |
| Race (mm {in}) | 40.2 {1.58} | - | - | - | - | - | - | 59.0 {2.32} | - |
