Front HO2S current inspection
WARNING: This page is about a different variant/trim than selected.
- Warm up the engine to normal operating temperature.
- Using the WDS or equivalent, monitor the following:
- Vehicle speed (PID: VSS)
- Engine speed (PID: RPM)
- Front HO2S current (PID: O2S11)
- Drive the vehicle and decelerate the engine speed by releasing the accelerator pedal fully when the engine speed is 3,000 RPM or more .

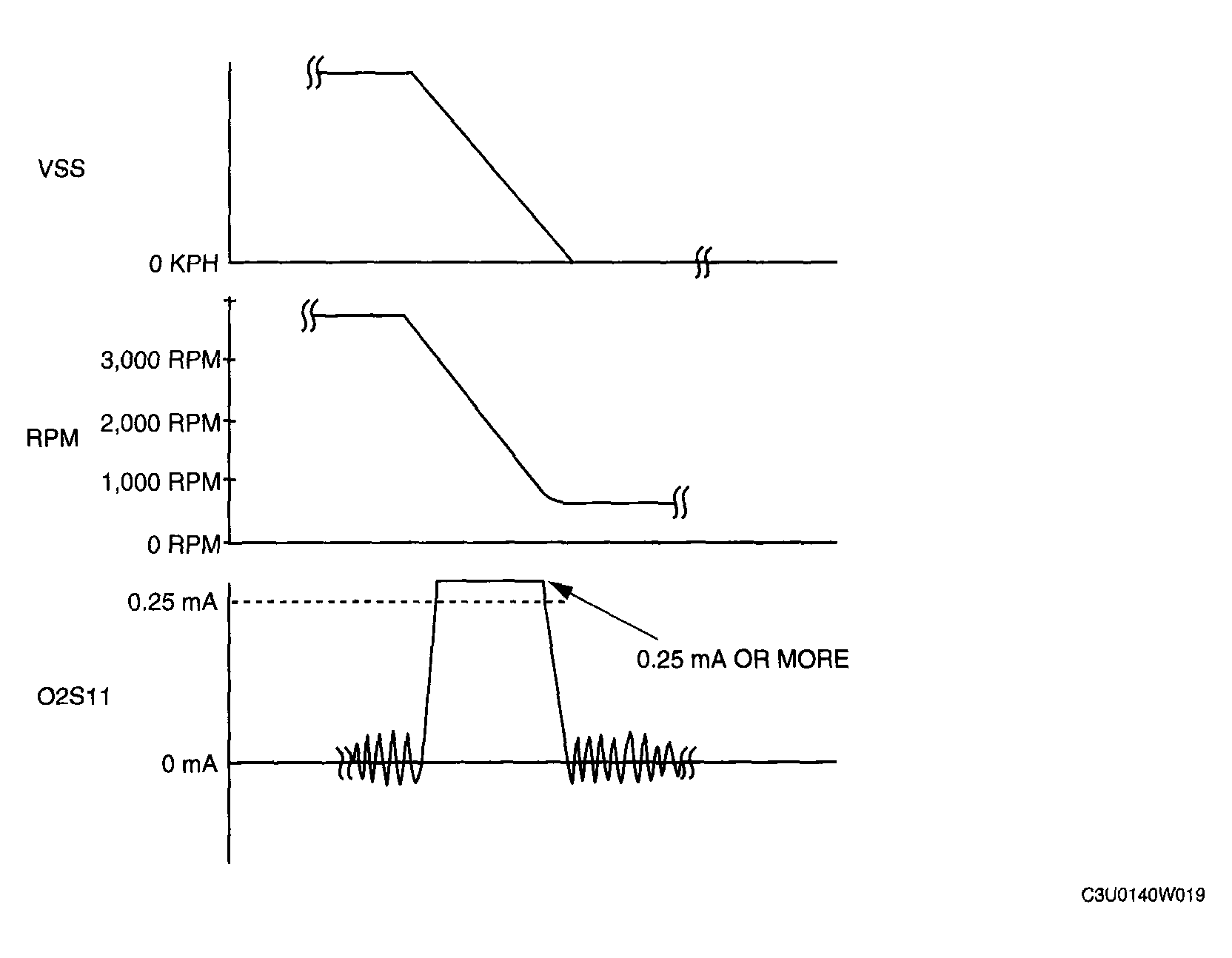

- Verify that the front HO2S current (PID: O2S11) is 0.25 mA or more
while decelerating as shown in the figure.
- If not within the specification, inspect the HO2S for an open or short circuit. (See FRONT HO2S CIRCUIT OPEN/SHORT INSPECTION (SENSOR) ). Then if there is no malfunction in the wiring harness, replace the front HO2S.
