Transfer Bracket Installation Note

WARNING: This page is about a different variant/trim than selected.

Hand-tighten the bolt A and B.
Tighten the bolts in order of C, A, B, D.
Tightening torque

42-62 N.m {4.3-6.3 kgf.m, 31.0-45.7 ft.lbf}

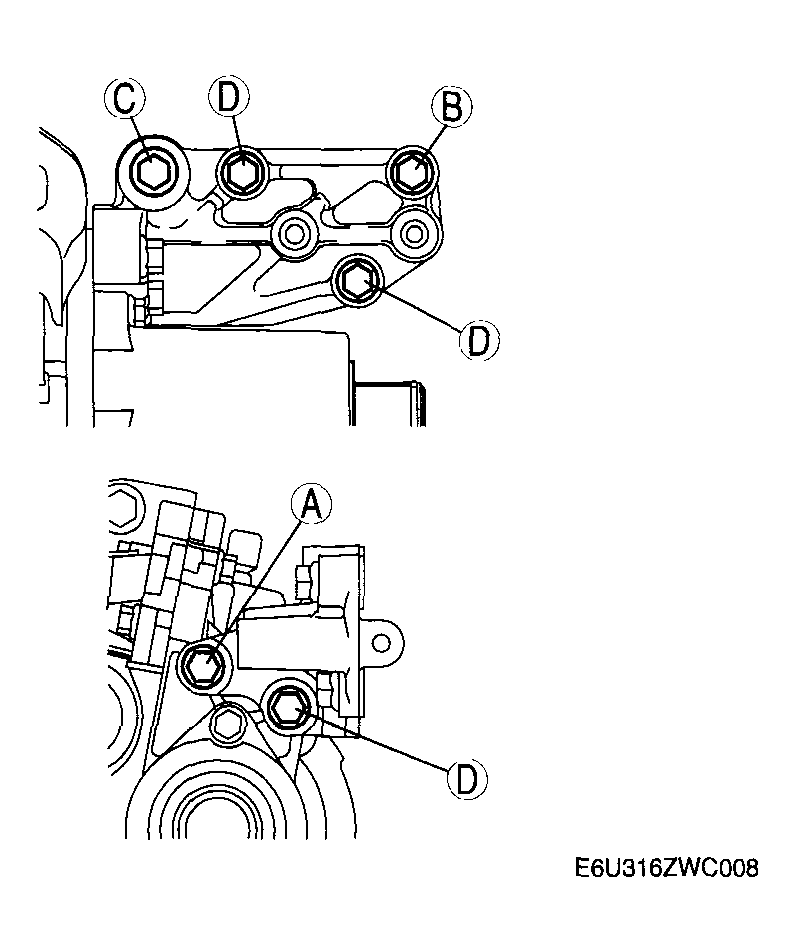

Fig 1: Transfer Bracket Bolt Tightening Sequence
Courtesy of MAZDA MOTORS CORP.
