Transfer Oil Inspection
WARNING: This page is about a different variant/trim than selected.
- Park the vehicle on level ground.

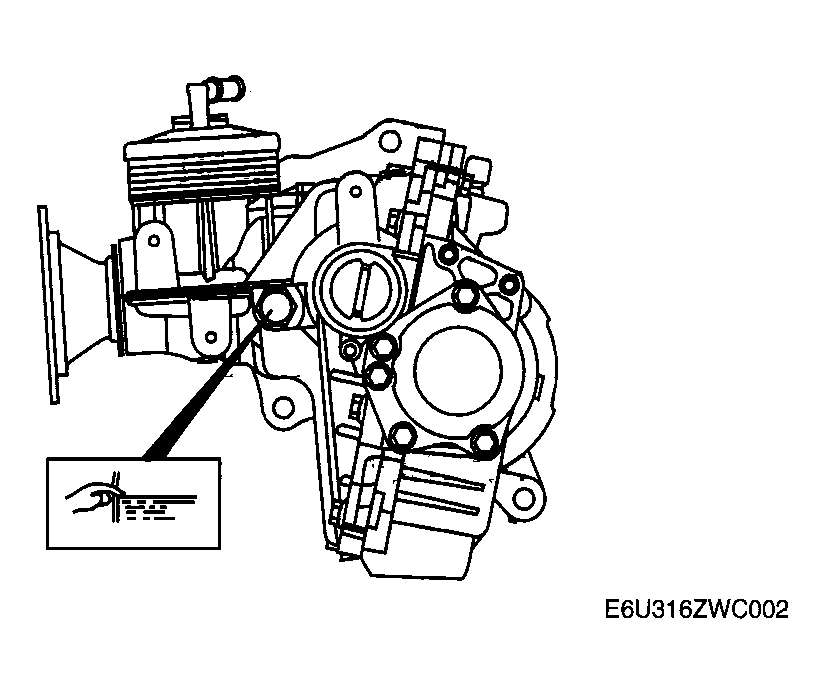

- Remove the oil level plug and with the washer.
- Verify that the oil is near the brim of the plug port.
- If the oil level is low, add the specified amount and type of oil through the oil level plug hole.
Transfer oil
Specified oil grade: API Service GL-5
Specified oil viscosity: SAE 80W-90
- Tighten the oil level plug with a new washer.
Tightening torque
39.2-58.8 N.m {4.0-5.9 kgf.m, 29.0-43.3 ft.lbf}
