Electronic AWD Control System Location Index

WARNING: This page is about a different variant/trim than selected.

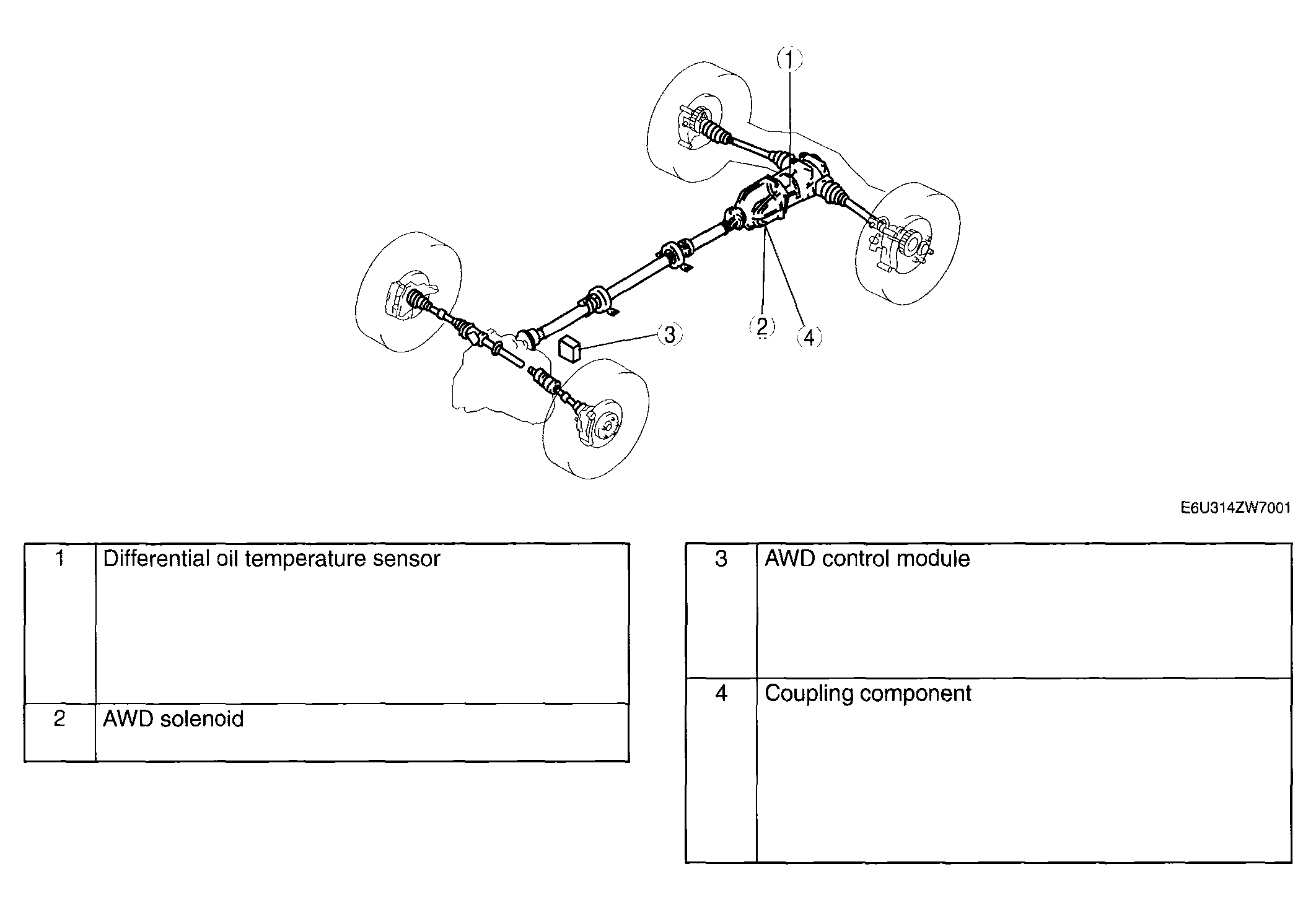

Fig 1: Identifying Electronic AWD Control System Components Location
G04325756Courtesy of MAZDA MOTORS CORP.
