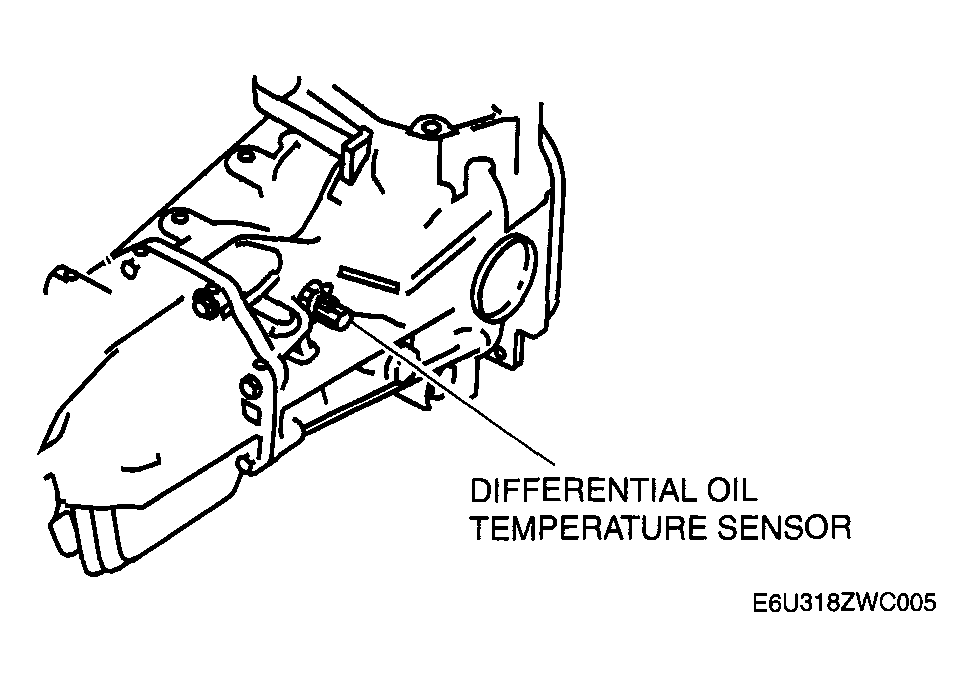

Differential Oil Temperature Sensor Removal/Installation
WARNING: This page is about a different variant/trim than selected.
WARNING:
- Hot differential oil may cause severe burns. Do not perform maintenance while differential oil is hot.
- Disconnect the negative battery cable.
- Disconnect the differential oil temperature sensor connector.
- Remove the differential oil temperature sensor.
- Apply differential oil to the O-ring.
- Install the differential oil temperature sensor.
Tightening torque
12.7-17.3 N.m {1.3-1.7 kgf.m, 9.4-12.7 ft.lbf}
- Connect the differential oil temperature sensor connector.
- Connect the negative battery cable.
