Coupling Component Removal/Installation: Notes

WARNING: This page is about a different variant/trim than selected.
  1. Drain the differential oil into a container.
  2. Remove the after silencer, pre-silencer, and the catalytic converter. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [L3 WITH TC] ).
  3. Remove the propeller shaft. (See PROPELLER SHAFT REMOVAL/INSTALLATION ).
  4. Remove in the order indicated in the table.
  5. Install in the reverse order of removal.
  6. Add differential oil.

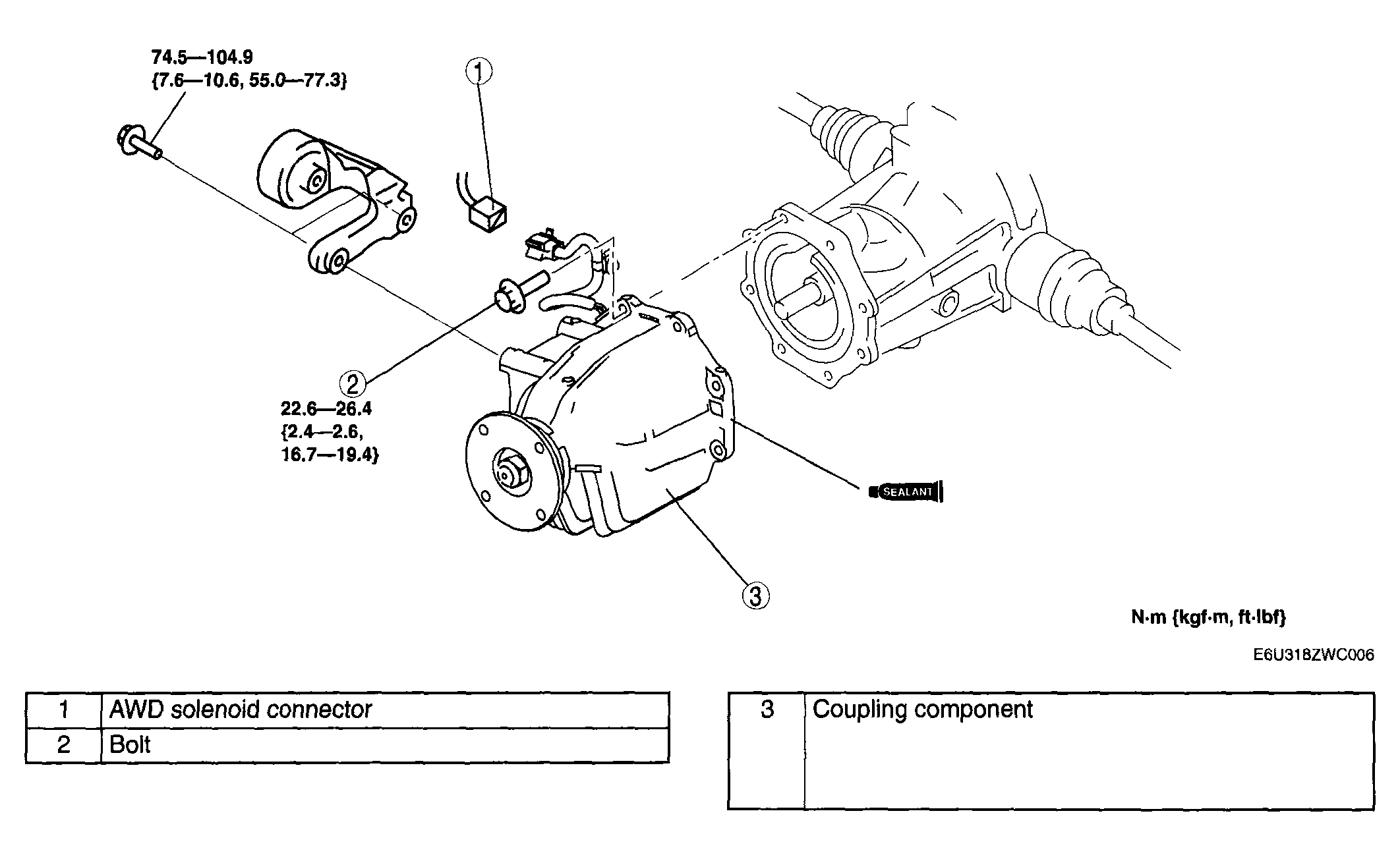

    Fig 1: AWD Solenoid & Torque Specification
    G04325762Courtesy of MAZDA MOTORS CORP.
