Coupling Component Installation Note
WARNING: This page is about a different variant/trim than selected.
NOTE:
- Clean away the old sealant before applying the new sealant.
- Install the coupling unit within 10 min after applying sealant.
- Allow the sealant to set at least 30 min after installation before filling the differential with the specified oil.
- Apply sealant to the coupling case surface that contacts the rear differential case.

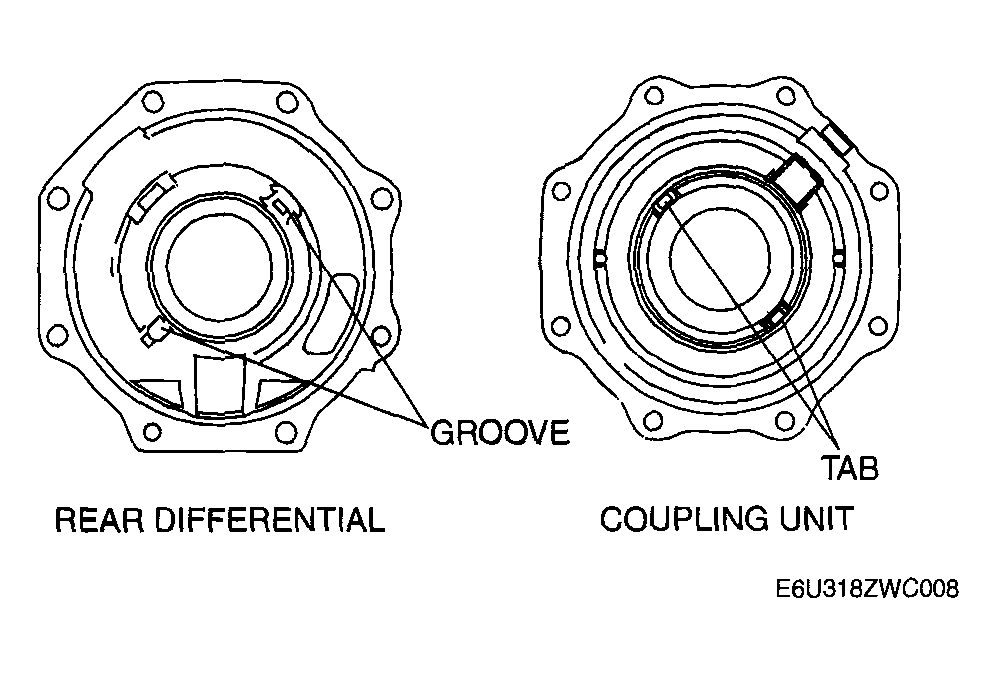

- Install the coupling unit to the rear differential so that the two tabs on the coupling unit engage the rear differential grooves (two locations).
Tightening torque
22.6-26.4 N.m {2.4-2.6 kgf.m, 16.7-19.4 ft.lbf}
