Coupling Component Disassembly: Notes

WARNING: This page is about a different variant/trim than selected.
WARNING:
  • The engine stand is equipped with a self-lock mechanism, however, if the coupling unit is in a tilted condition, the self-lock mechanism could become inoperative. If the coupling unit unexpectedly rotates it could cause injury, therefore do not maintain the coupling unit in a tilted condition. When turning the coupling unit, grasp the rotation handle firmly.

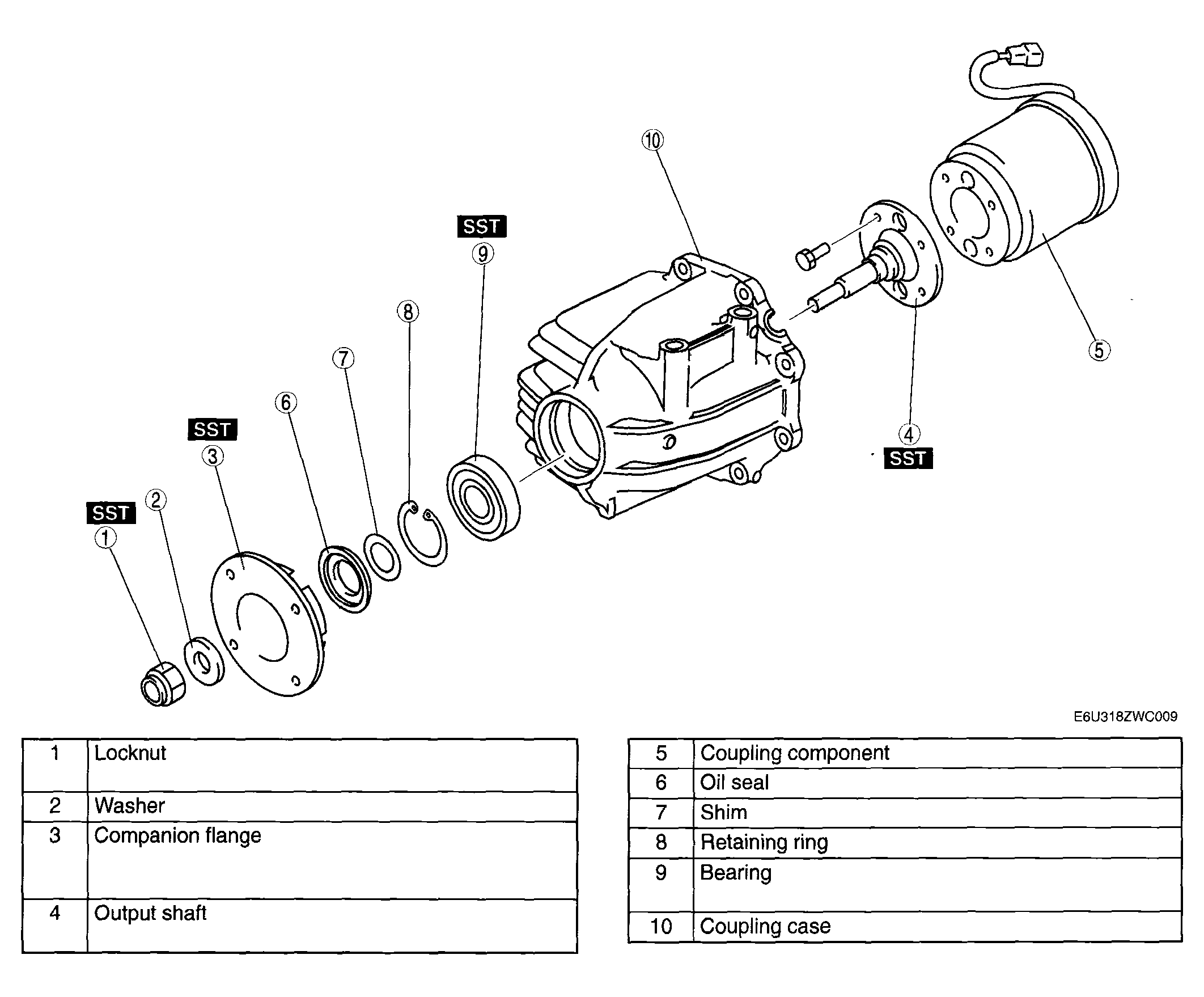

Fig 1: Disassembling Coupling Component
G04325765Courtesy of MAZDA MOTORS CORP.
