AWD Control Module Removal/Installation

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative battery cable.
  2. Remove the lower panel.
  3. Remove in the order indicated in the table.
  4. Install in the reverse order of removal.

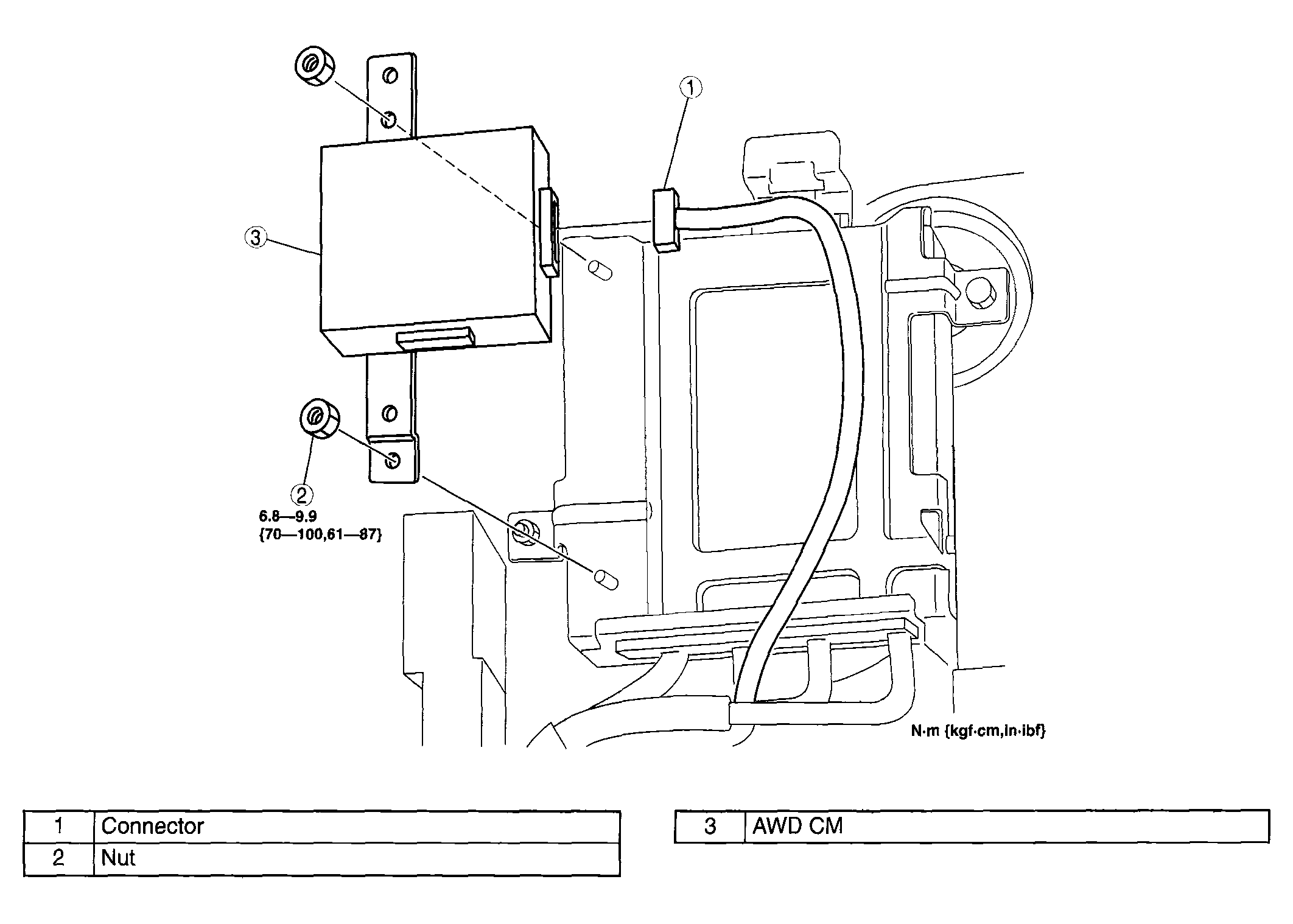

    Fig 1: AWD Control Module & Torque Specification
    G04325761Courtesy of MAZDA MOTORS CORP.
