Transaxle Oil Inspection
WARNING: This page is about a different variant/trim than selected.
- Park the vehicle on level ground.
- Remove the oil level plug and washer.

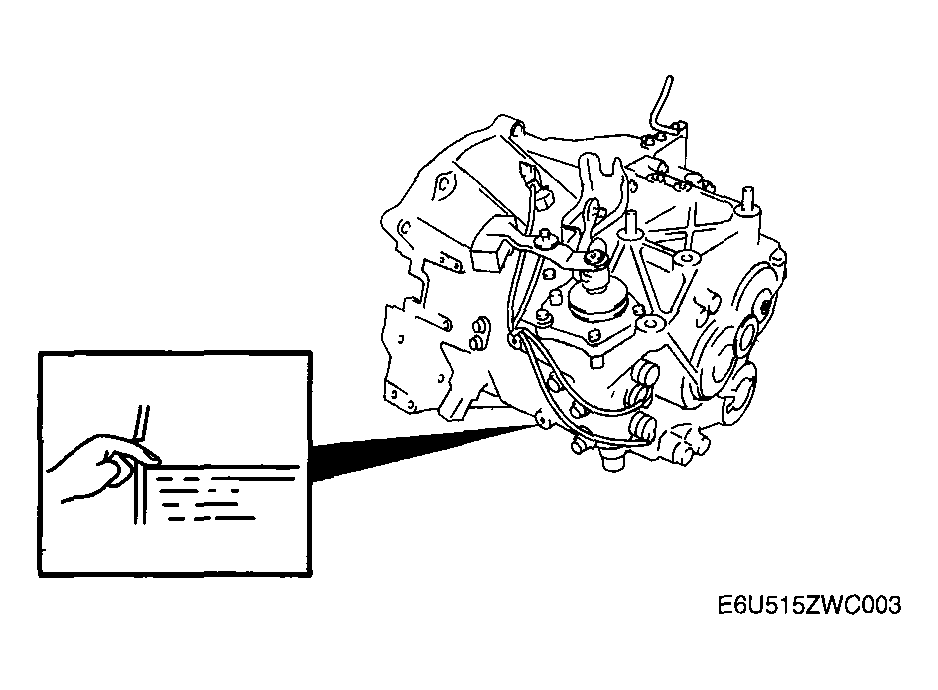

- Verify that the oil is near the brim of the plug port.
- If the oil level is low, add the specified amount and type of oil through the filler plug hole.
Manual transaxle oil [A26MX-R]
Specified oil grade: API Service GL-4 or GL-5
Specified oil viscosity: SAE 75W-90
- If the oil level is low, add the specified amount and type of oil through the filler plug hole.
- Tighten the oil level plug with a new washer.
Tightening torque
27.5-50.9 N.m {2.8-5.1 kgf.m, 37.5-20.2 ft.lbf}
