Manual Transaxle Removal Note

WARNING: This page is about a different variant/trim than selected.

Loosen the bolt shown in the figure and set the brake pipe out of the way.

Fig 1: Brake Pipe Bracket Bolt
Courtesy of MAZDA MOTORS CORP.

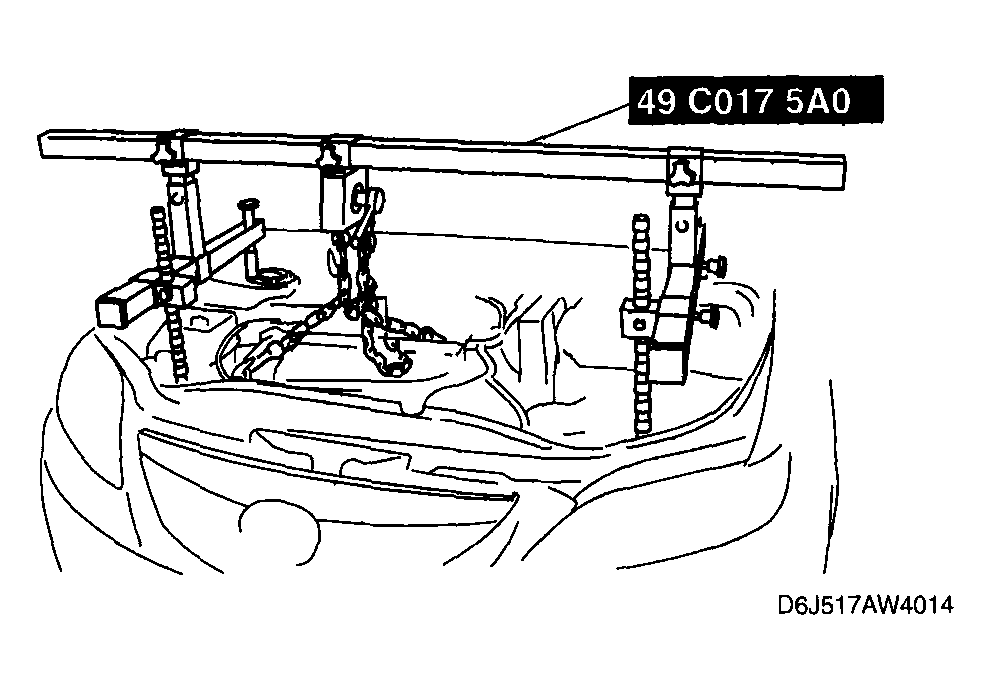

Lean the engine toward the transaxle.

Fig 2: Supporting Transaxle
Courtesy of MAZDA MOTORS CORP.

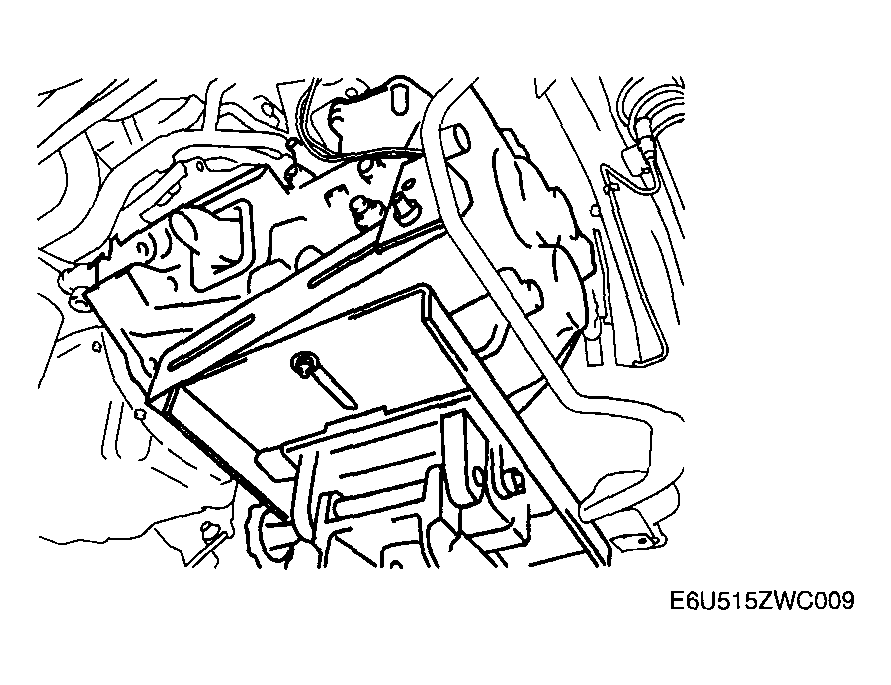

Support the transaxle on a jack.
Remove the transaxle mounting bolts.
Remove the transaxle.

Fig 3: Supporting Transaxle On A Jack
Courtesy of MAZDA MOTORS CORP.
