Manual Transaxle Installation Note
WARNING: This page is about a different variant/trim than selected.
- Set the transaxle on a jack and lift into place.
- Install the transaxle mounting bolts.

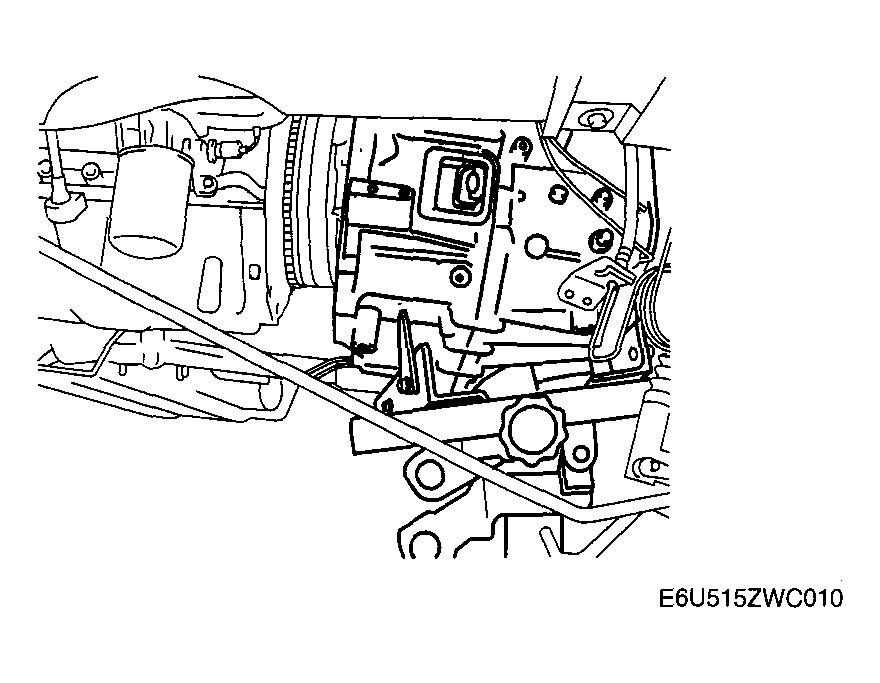

- Tighten the bolt shown in the figure.
Tightening torque
18.5-25.5 N.m {1.89-2.60 kgf.m, 13.7-18.8 ft.lbf}
