Ignition Coil Removal/Installation

WARNING: This page is about a different variant/trim than selected.

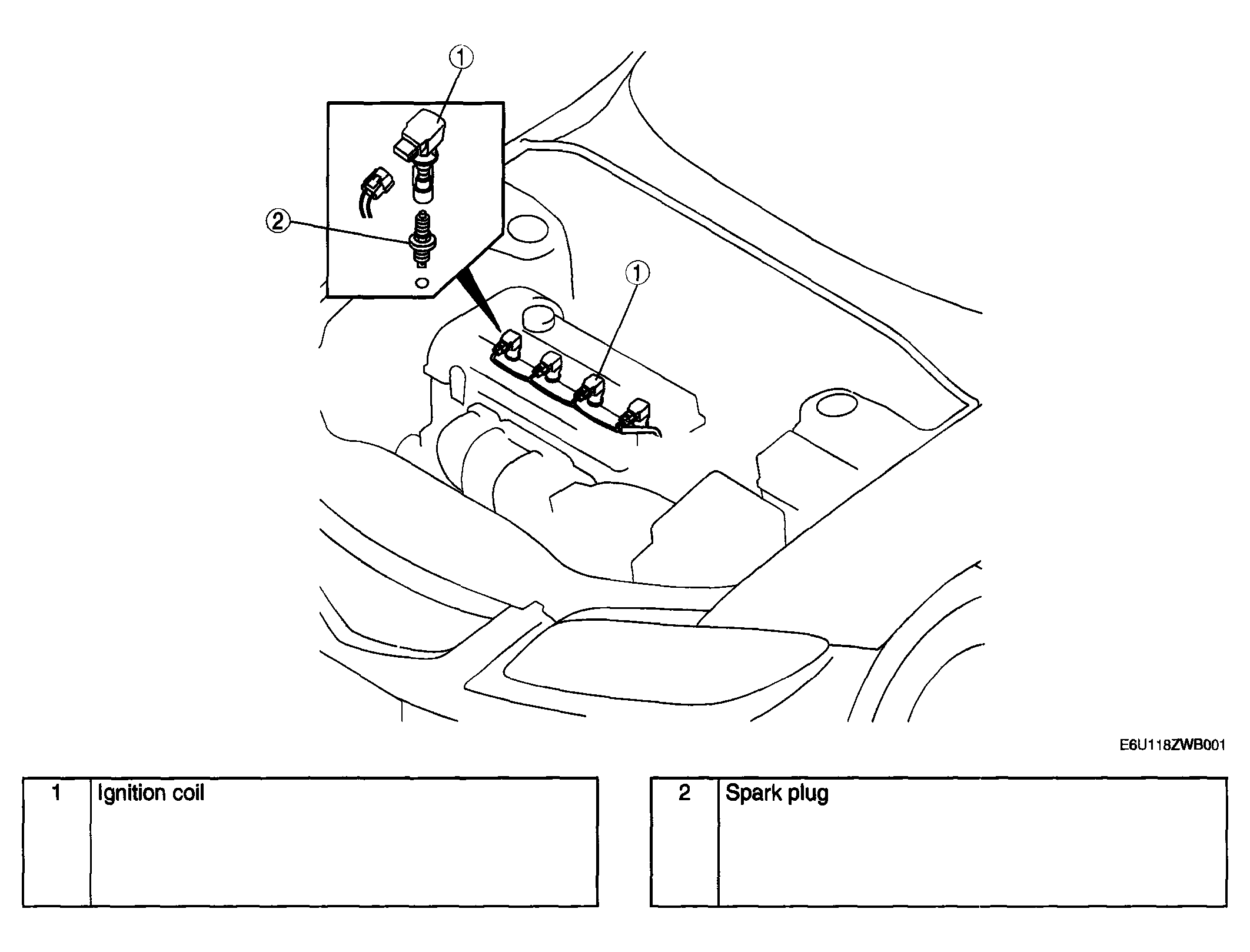

Fig 1: Identifying Ignition System Components [L3 With TC]
G04325058Courtesy of MAZDA MOTORS CORP.


  1. Disconnect the negative battery cable.
  2. Remove the charge air cooler. (See INTAKE AIR SYSTEM REMOVAL/INSTALLATION ).
  3. Remove in the order indicated in the table.

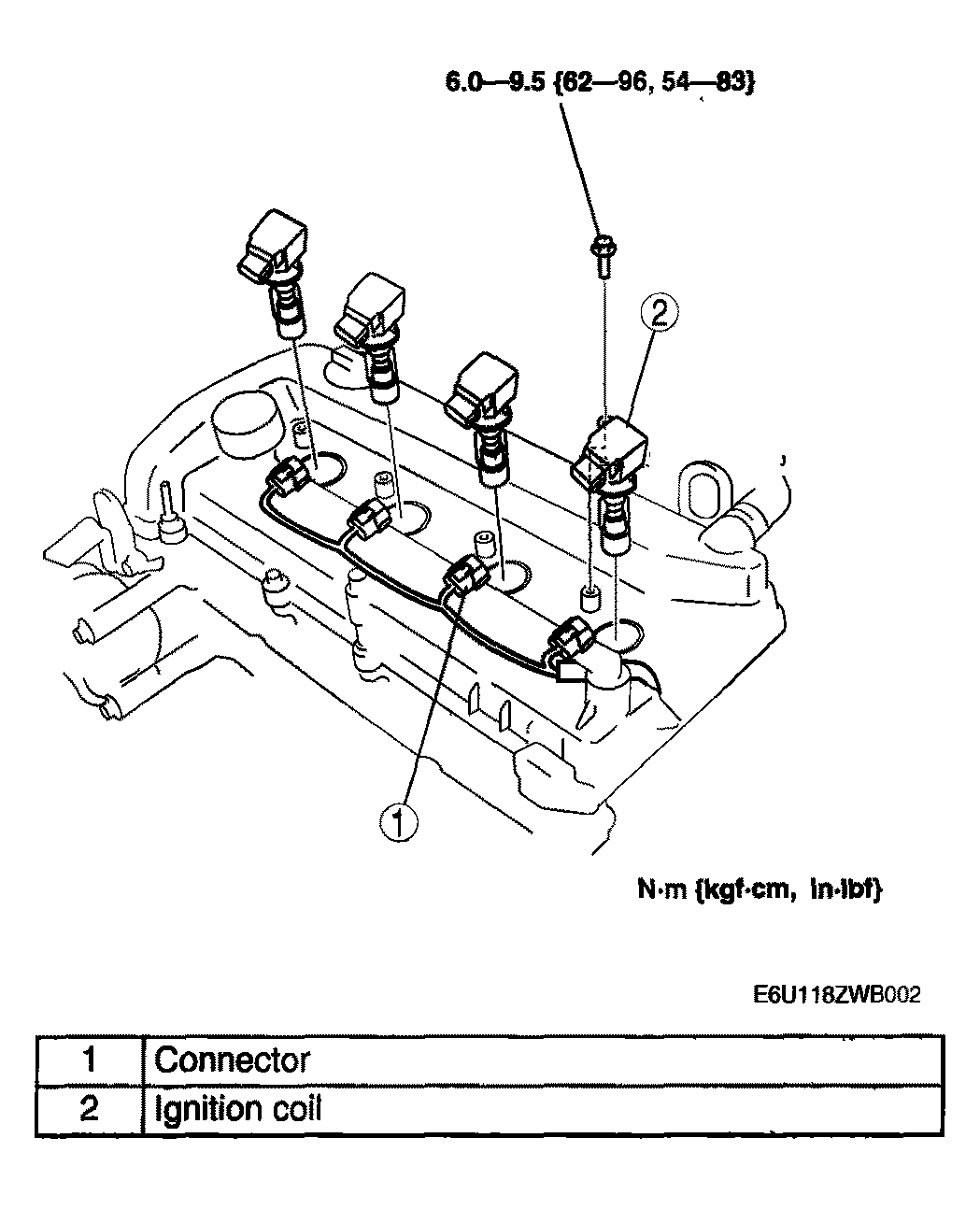

    Fig 1: Identifying Ignition Coil
    G04325059Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
